INTRODUCTION

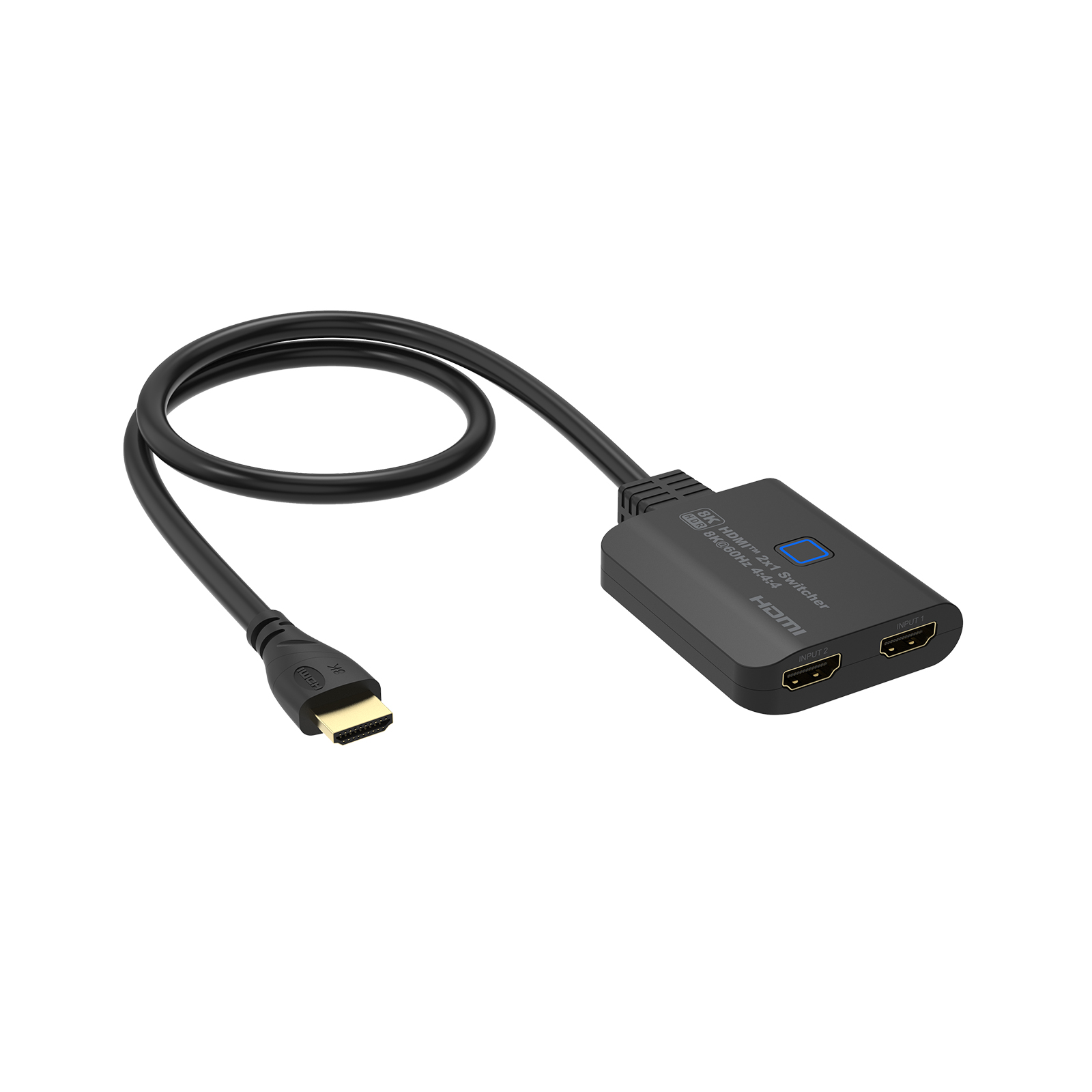

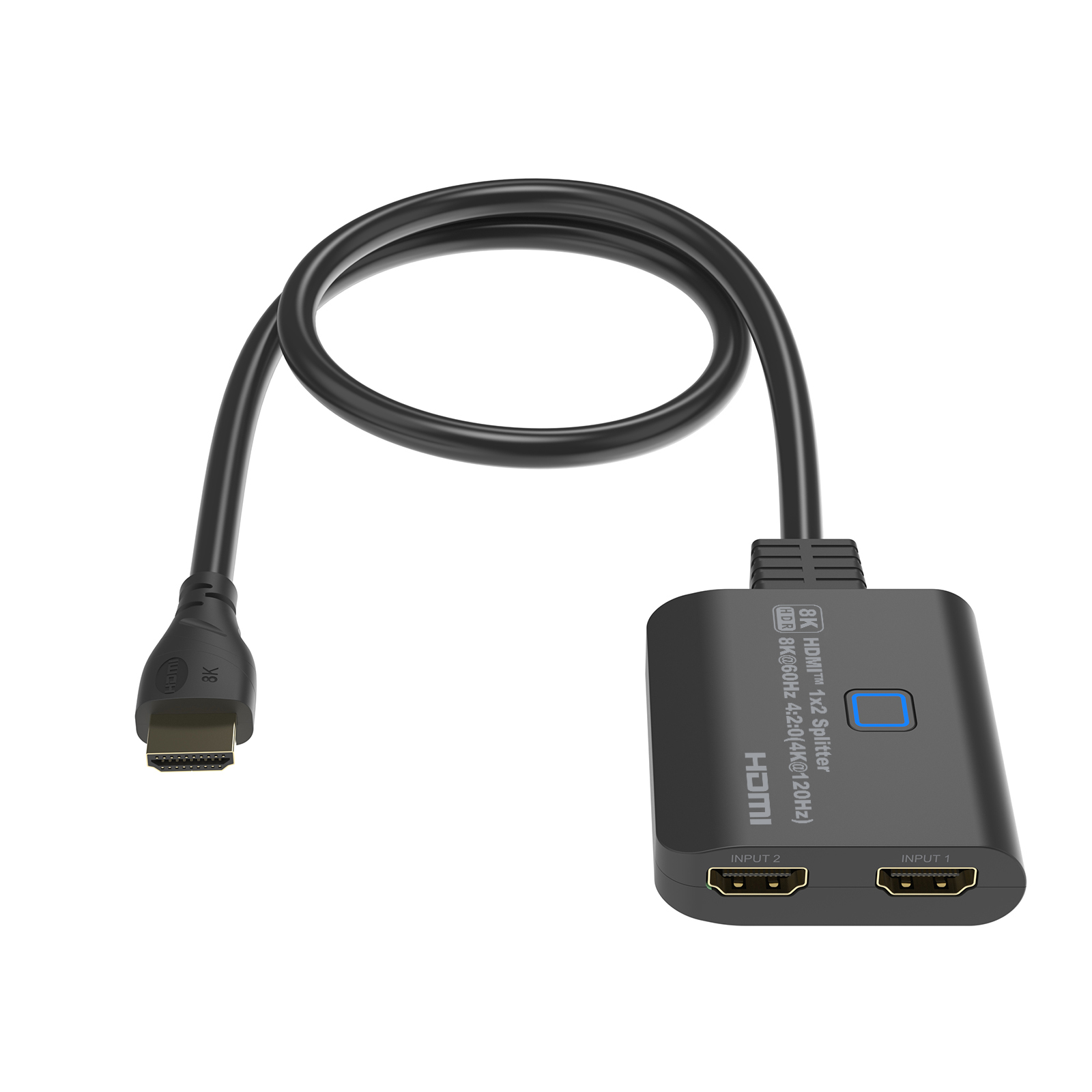

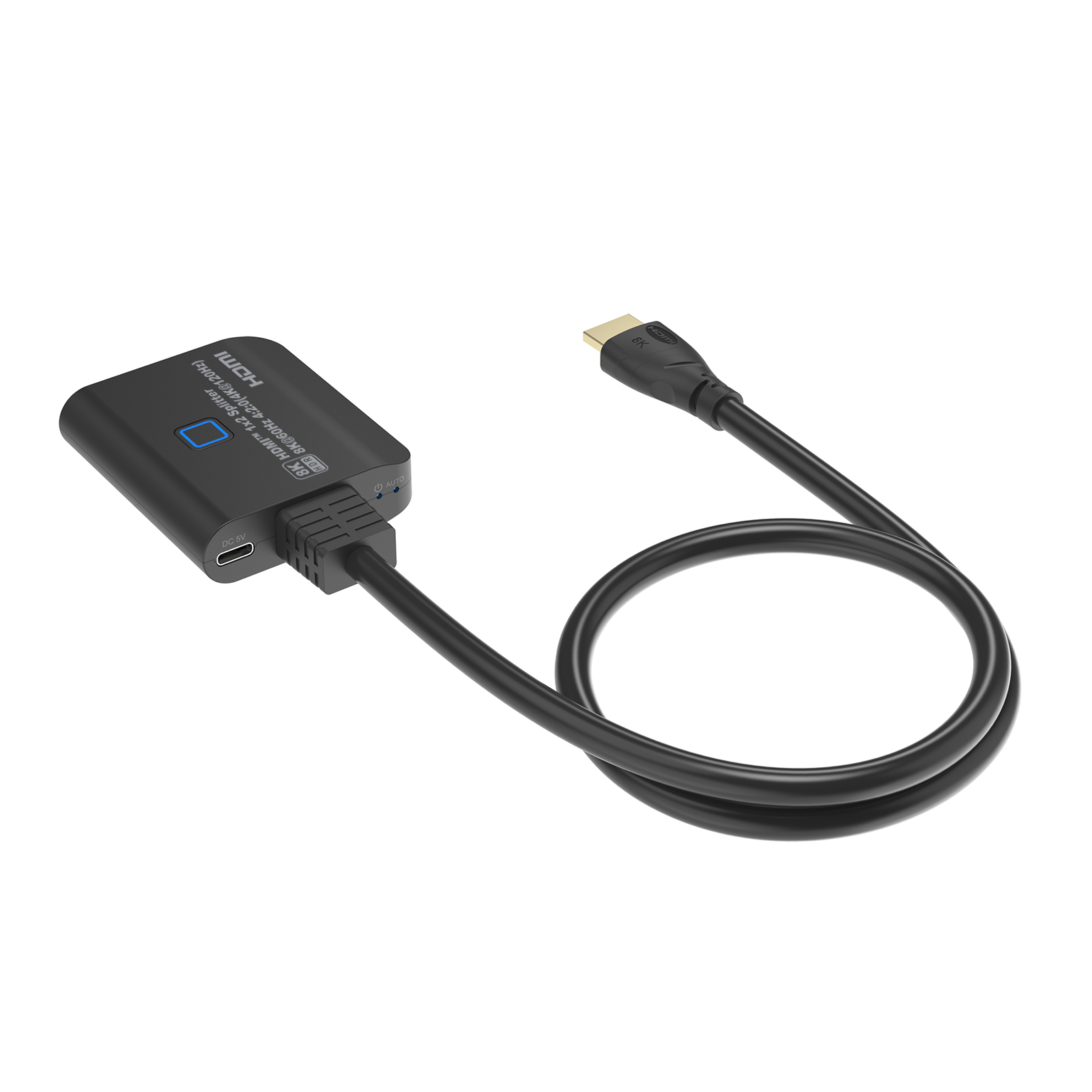

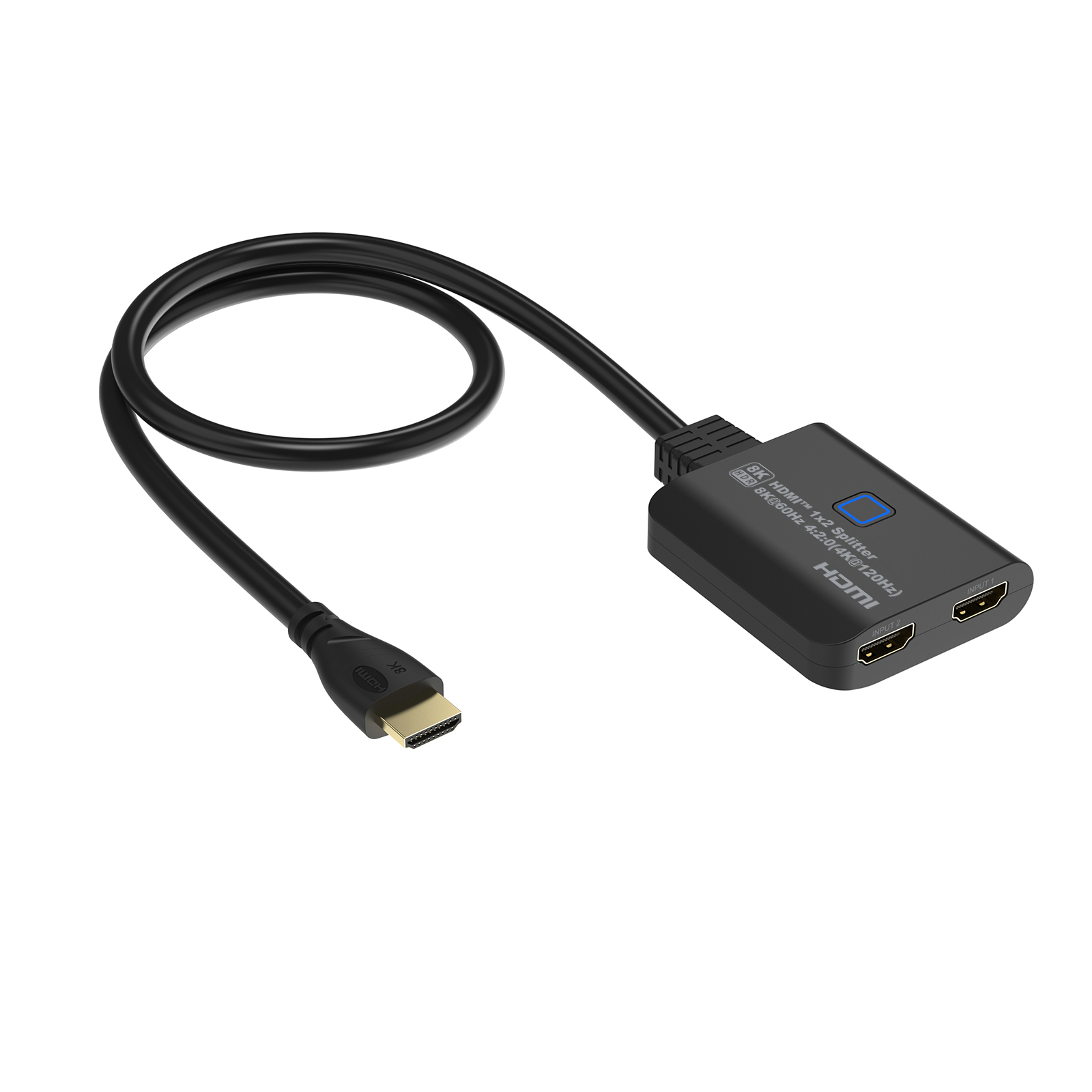

The 2 port HDMI™ Switch Supports 8K@60Hz (7680x4320p@60Hz) and lets you share a display or projector with two HDMI™-enabled video sources. The switch features two independent inputs that each support 8K resolution and 7.1 surround sound audio. You’ll be amazed at how this video switch maintains Ultra HD picture quality. 8K is supported by the latest A/V devices and delivers four times the resolution of 4K. Plus, because the switch is backward compatible with Ultra HD 4K and high-definition 1080p, you can rest assured any video source will look great in your digital signage application.
Enjoy hassle-free operation with two different switching modes:
1. Manual Port Switching: This enables you to manually select your HDMI™ source with an easy-to-use panel button.
2. Automatic Port Switching: Enables your most recently activated video source to be displayed automatically.
It also features the Automatic and Manual Switching mode change function and IR receiver on/off function via a long press of the switch button for 3 and 6 seconds to meet customers’ needs.
FEATURES
- HDMI Stylish switches with manual port switching / automatic port switching, manual switching and automatic switching mode can be changed to another via long press the selector button for 3-5 seconds.
- Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz.
- Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels).
- Support 12bit per channel (36bit all channels) deep color.
- Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4.
- Support High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
- Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function.
- Built-in Equalizer, Retiming and Driver.
- Support Consumer Electronics Control.
- Automatic switching (smart function) and manual switching.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, Dolby Digital(including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS
SPECIFICATIONS
Input Ports
- HDMI x 2
Output Ports
- HDMI x 1
Vertical Frequency Range
- 50/60/100/120/240Hz
Video Amplifier Bandwidth
- 12Gbps/1200MHz per channel(48Gbps all channels)
Interlaced(50&60Hz)
- 480i, 576i, 1080i
Progressive(50&60Hz)
- 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- USB Power Cable
Power Consumption (Max)
- 5W
Splitter Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Power Adapter Standard
- US, EU, UK, AU Standard etc.
Dimension(LxWxH)
- 65.5*55.5*16mm
Net Weight
- 77g
Material
- ABS
User Manual
- English Version
