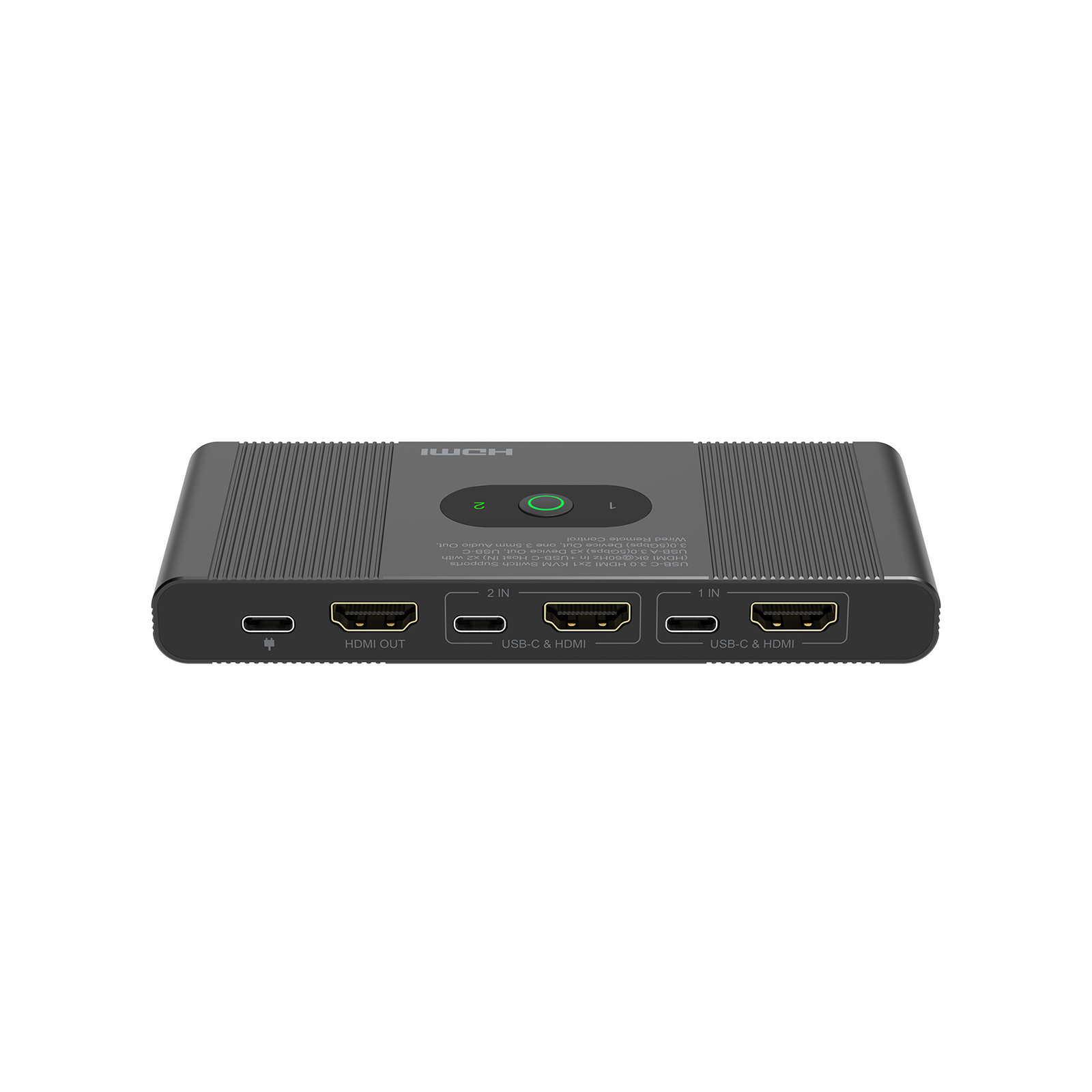

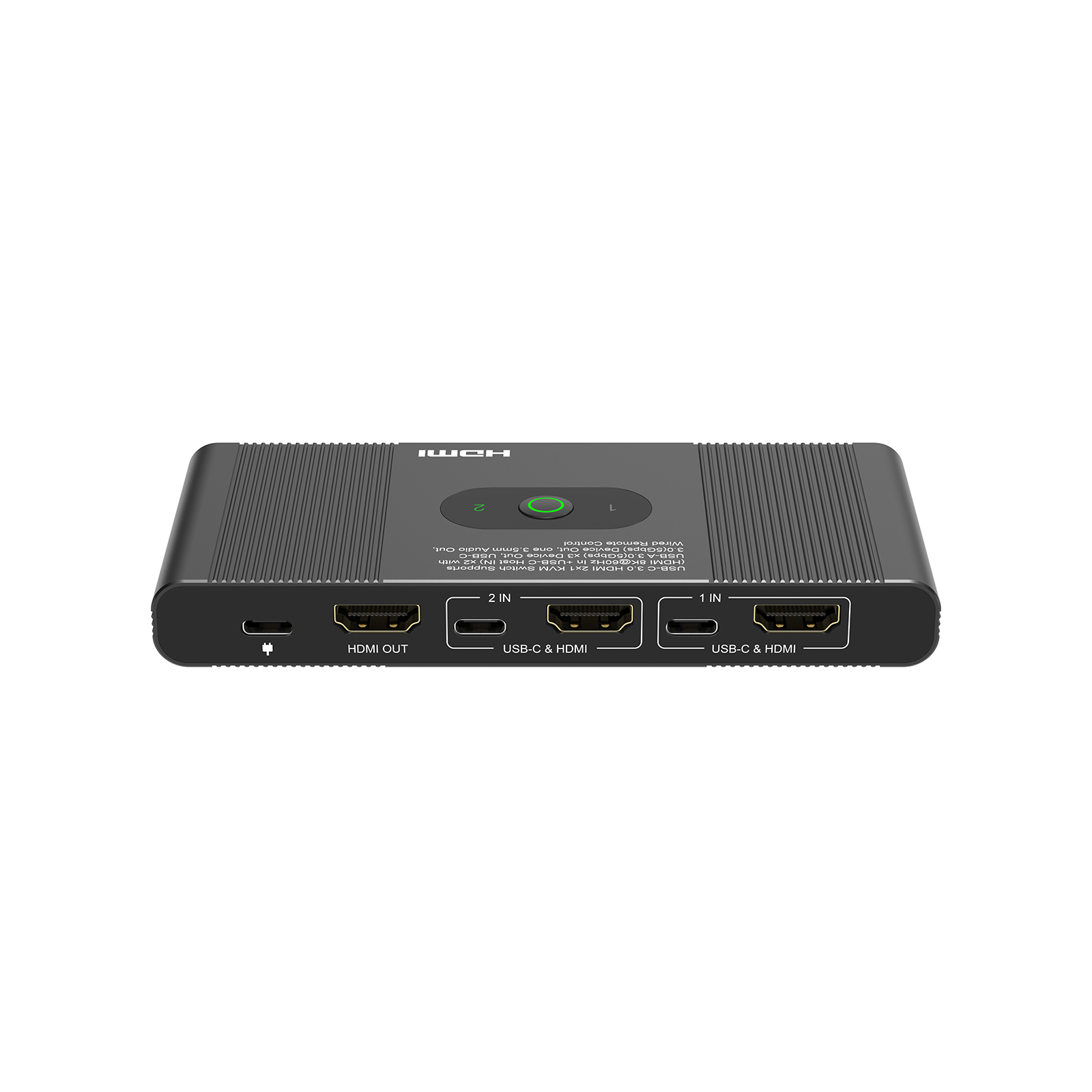

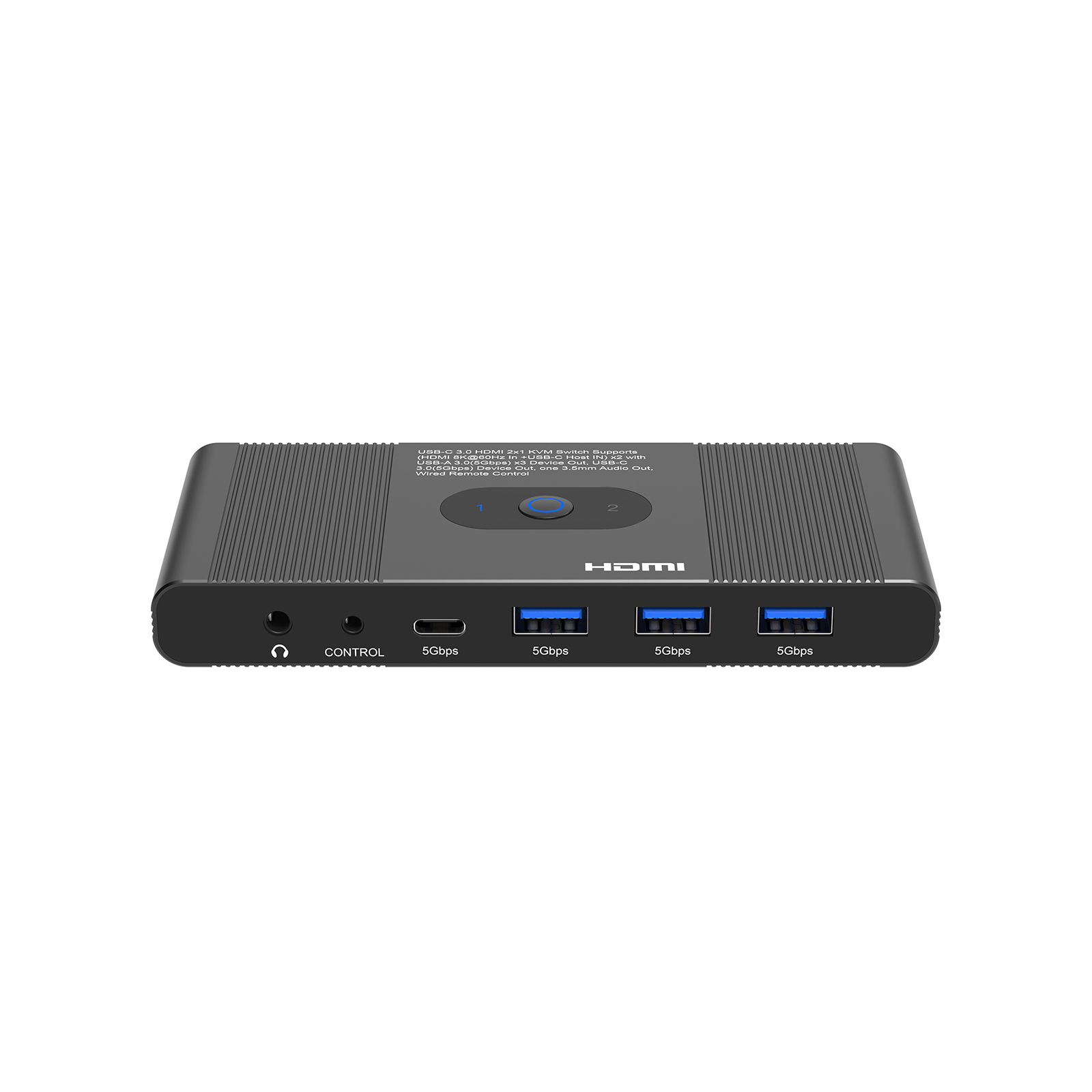

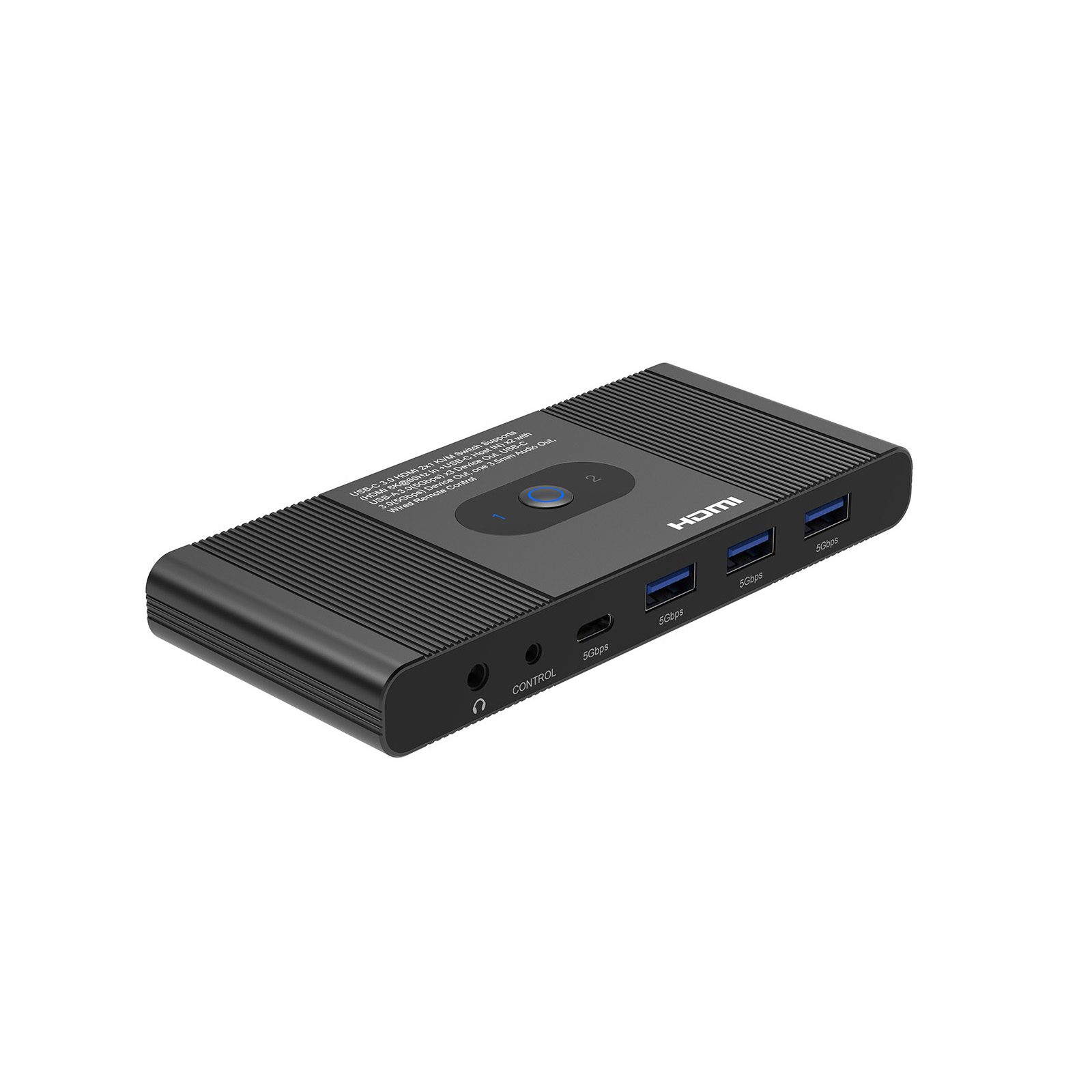

USB-C 3.0 HDMI 2×1 KVM Switch Supports (HDMI 8K@60Hz In +USB-C Host IN) x2 with USB-A 3.0(5Gbps) x3 Device Out,USB-C 3.0(5Gbps) Device Out. one 3.5mm Audio Out,Wired Remote Control

Package Content

INTRODUCTION

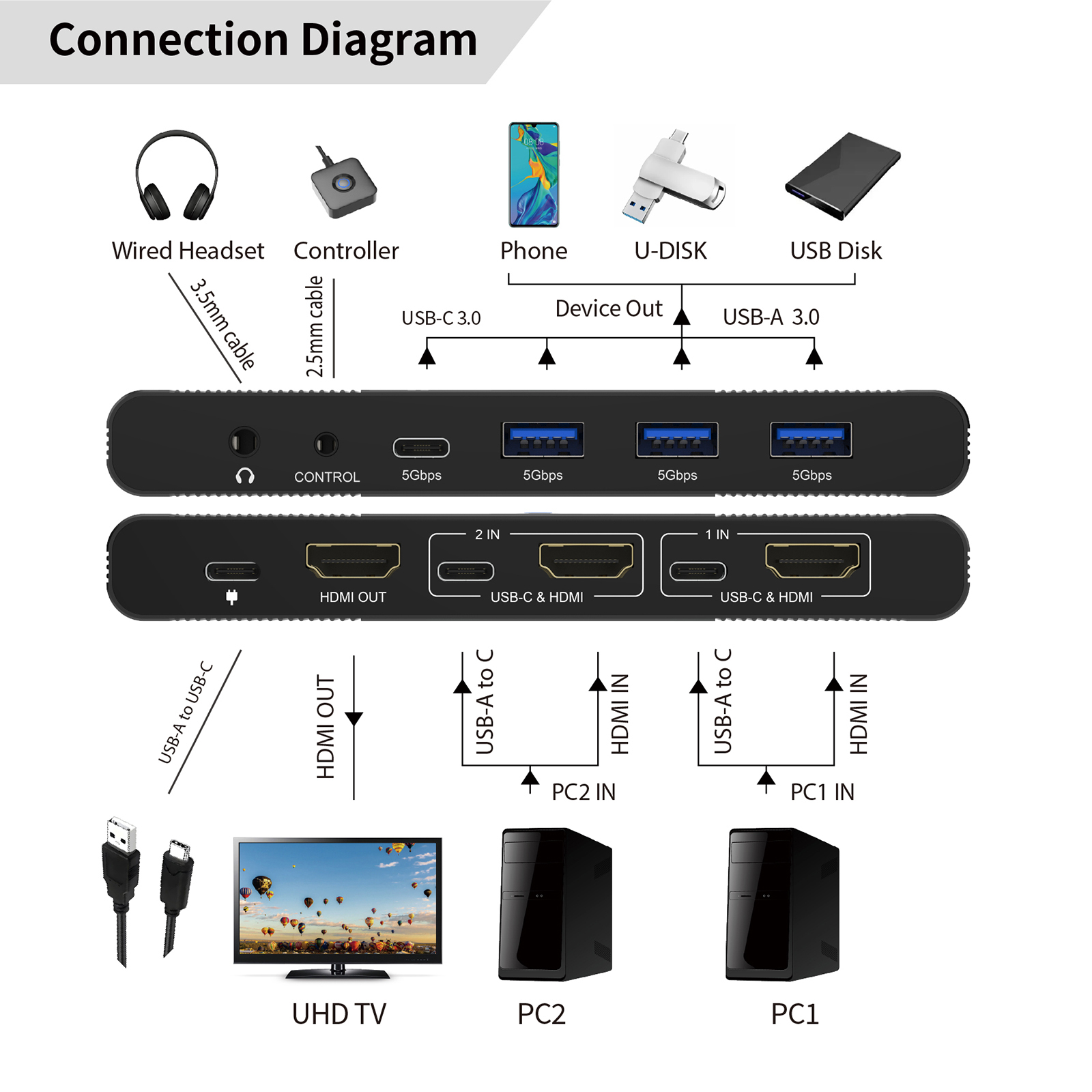

The USB-C 3.0 HDMI KVM Switch Supports two HDMI 8K@60Hz In + two USB-C Host IN, USB-A 3.0(5Gbps) x3 Device Out, USB-C 3.0(5Gbps) Device Out, one 3.5mm Audio out, Wired Remote Control let a display or projector with two HDMI™-enabled video sources. The switch features two HDMI+USB-C 3.0 inputs that support 8K resolution and 7.1 surround sound audio. It features three USB 3.0 A ports, one USB-C 3.0 port and one audio out port, which makes the customers share a pair of Keyboard, mouse and other USB device between two HDMI™-enable PCs and devices. Enjoy hassle-free operation with two switching modes: Manual port switching via top panel button or Wired Remote Control.

FEATURES
  • Support two HDMI+two USB-C 3.0 inputs.
  • Support three USB 3.0 A and one USB-C 3.0 ports for other USB devices up to 5Gbps.
  • Support stereo audio out function.
  • Support manual switching: top panel button or Wired Remote Control.
  • Support full 3D video format.
  • Support high resolution up to 8K@60Hz YUV 4:4:4.
  • Support HDCP 2.3, HDCP2.2 and HDCP 1.4.
  • Support High Dynamic Range (HDR) video.
  • Support Consumer Electronics Control.
  • Support highest data transfer rate up to 12Gbps per channel (48Gbps all channels).
  • TMDS clock can be up to 1200MHz.
  • Support 12bit per channel (36bit all channels) deep color.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS
Input Ports

  • HDMI x 2, USB-C 3.0 x 2, Control (2.5mm) x1

Output Ports

  • HDMI x 1, USB-C 3.0 x 1, USB 3.0 A x 3, Audio x 1

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 12Gbps/1200MHz per channel(48Gbps all channels)

Interlaced(50&60Hz)

  • 480i,576i,1080i

Progressive(50&60Hz)

  • 480p,576p,720p,1080p,4K@24/25/30/50/60/120Hz,8K@25/30/50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 80% RH non-condensation

Switcher Unit Cert

  • FCC, CE, RoHS

Dimension(LxWxH)

  •

Net Weight

  •

Material

  • ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
