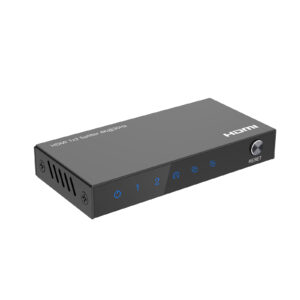

HDMI 3×1 Switcher 8K@60Hz 4:4:4

INTRODUCTION

The 3 port HDMI™ Switch Supports 8K@60Hz (7680x4320p@60Hz) and lets you share a display or projector with three HDMI™-enabled video sources. The switch features three independent inputs that each support 8K resolution and 7.1 surround sound audio. You’ll be amazed at how this video switch maintains Ultra HD picture quality. 8K is supported by the latest A/V devices and delivers four times the resolution of 4K. Plus, because the switch is backward compatible with Ultra HD 4K and high-definition 1080p, you can rest assured any video source will look great in your digital signage application.
Enjoy hassle-free operation with three different switching modes:
1. Manual Port Switching: enables you to manually select your HDMI™ source with an easy-to-use panel button.
2. Remote Control Switching: enables you to control the switch at a distance.
3. Automatic Port Switching: This enables your most recently activated video source to be displayed automatically.
It also features the Automatic and Manual Switching mode change function and IR receiver on/off function via a long press of the switch button for 3 and 6 seconds to meet customers’ needs.

FEATURES

• HDMI Stylish switches with manual port switching / automatic port switching, manual switching and automatic switching mode can be changed to another via long press the selector button for 3-5 seconds or press the “Auto” button to change the states directly.
• Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz.
• Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels).
• Support 12bit per channel (36bit all channels) deep color.
• Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4.
• Support High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
• Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function.
• Built-in Equalizer, Retiming and Driver.
• Support Consumer Electronics Control.
• Automatic switching (smart function), manual switching and remote control switching.
• Support IR receiver on/off function via long press the selector button for 6 seconds or press the button to control the function on/off, turn on the IR receiver function for normal use and turn off the IR receiver function to avoid the unwished remote control the switch for using the same Infrared code.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS, Dolby Digital(including DTS-HD Master Audio™ and Dolby TrueHD).
