INTRODUCTION

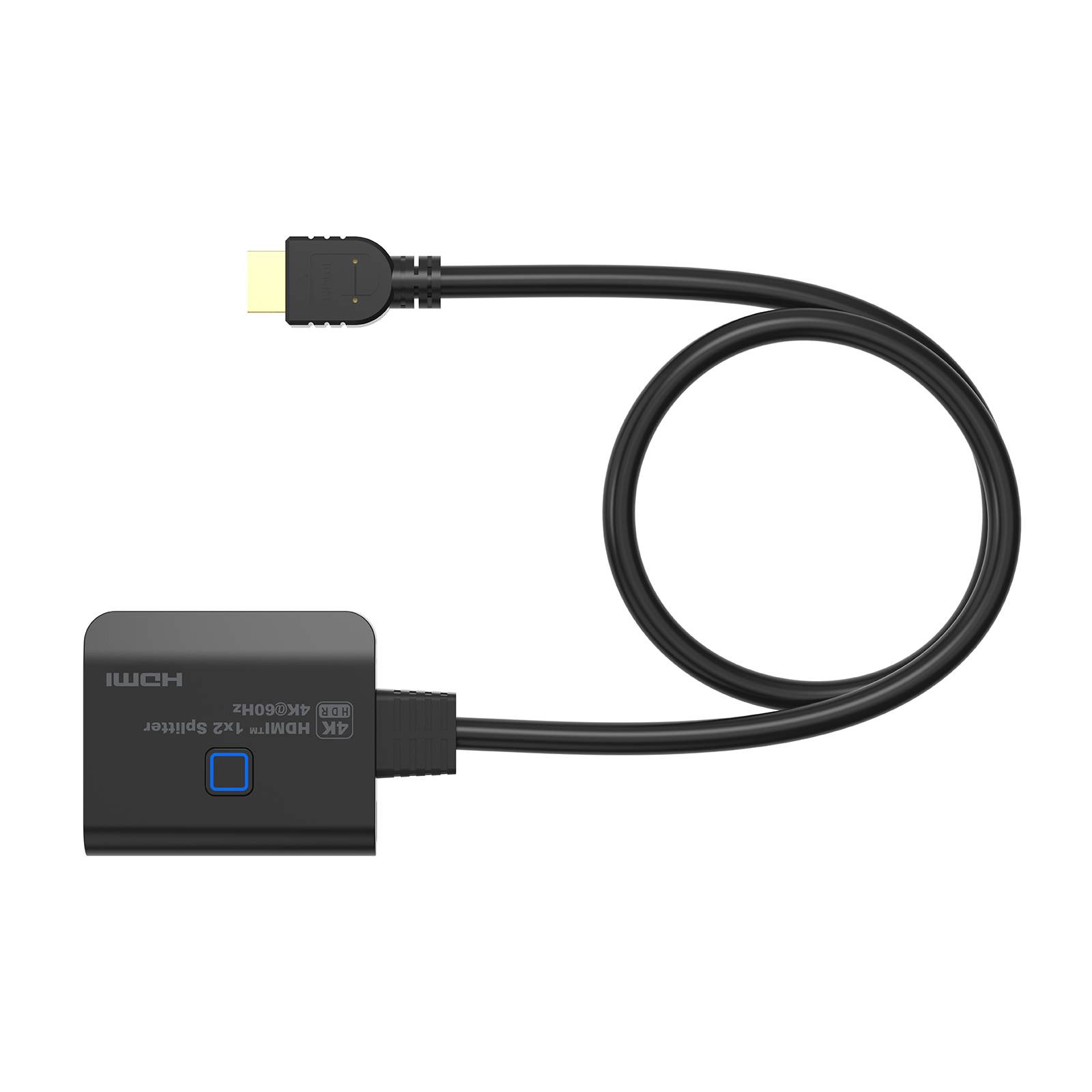

The HDMI™ 4K splitter 1×2 with pigtail lets you share two HDMI™ displays or projectors with an HDMI-enabled audio / video source device. With support for Ultra HD (4K@60Hz) the HDMI™ splitter ensures astonishing picture quality, four times the resolution of HD 1080p@60 Hz. The 4K splitter is also backward compatible with previous HDMI™ revisions, supporting 1080p / 720p HDMI™ video resolution devices. Even if you don’t require 4K video today, the HDMI™ 4K Splitter 1×2 ensures you’ll be ready to take advantage of tomorrow’s display technology. With one fixed 0.6 meters HDMI™ cable (pigtail), this splitter is cost-effective and time-saving.
FEATURES
- Support downscaler function, it can downscale the input 4K resolution to 1080p by the FHD (1080p) displays and 4K resolution to the 4K displays simultaneously.
- Support full 3D video format.
- Support high definition resolution 4K@60Hz 4:4:4.
- Support 600MHz/6Gbps per channel bandwidth (18Gbps all channels).
- Support 12bit per channel (36bit all channels) deep color.
- Support HDCP2.2 and HDCP1.4.
- Support High Dynamic Range (HDR) video.
- Support Consumer Electronics Control function.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS
Input Ports
- HDMI x 1
Output Ports
- HDMI x 2
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 6.0Gbps/600MHz per channel(18Gbps all channels)
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive(50&60Hz)
- 480p,576p,720p,1080p,4K@24/30Hz,4K@50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- USB-A to USB-C Power Cable
Power Consumption (Max)
- 5W
Switcher Unit Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 65.5×55.5x16mm
Net Weight
- 92g
Material
- ABS
User Manual
- English Version
Note: Specifications are subject to change without notice.
