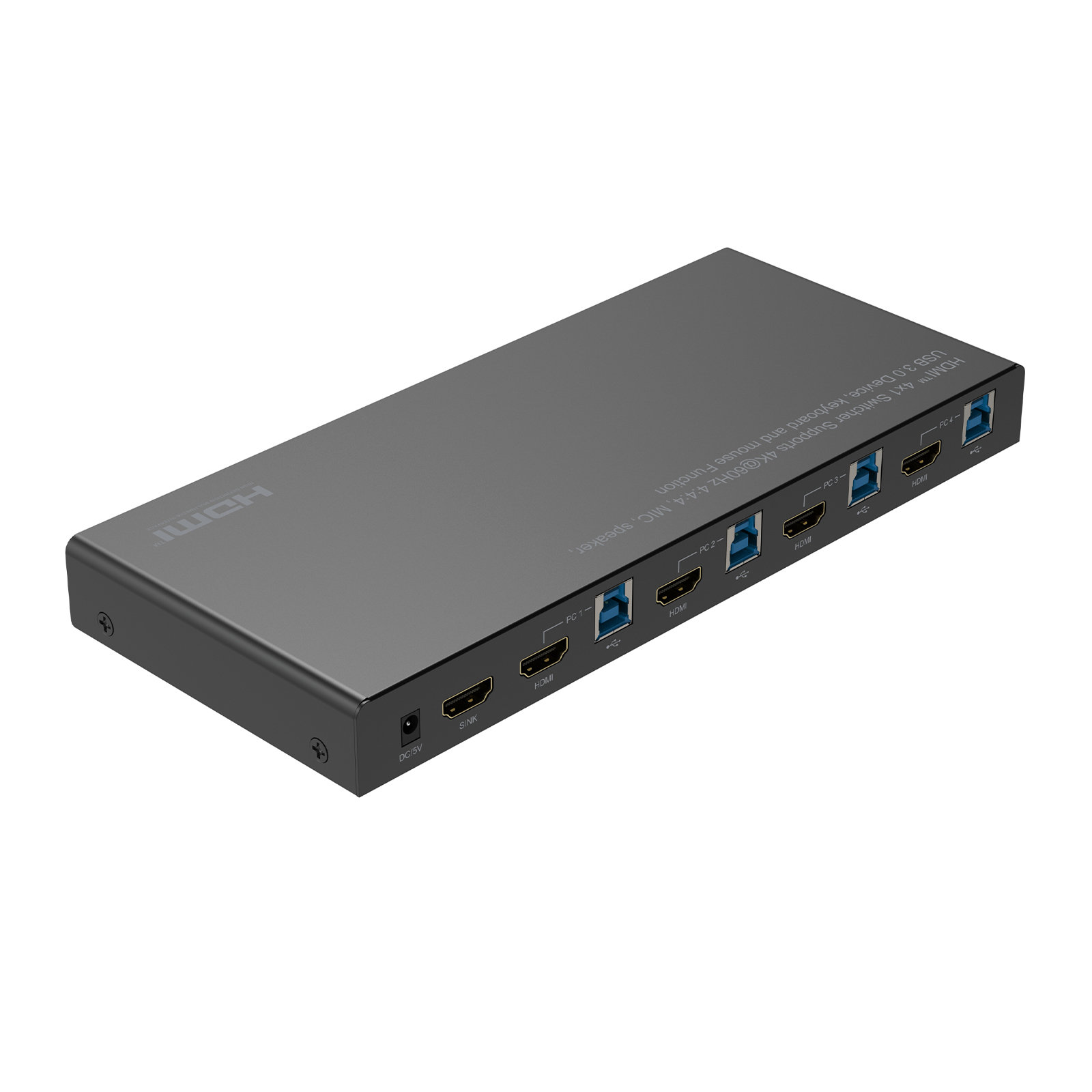

HDMl™ 4×1 Switcher Supports 4K@60Hz 4:4:4, MIC, speaker, USB 3.0 Device, keyboard and mouse Function

INTRODUCTION

The HDMI™ 4×1 4K switcher 4K@60Hz 4:4:4 let a display or projector with four HDMI™-enabled video sources. The switch features four independent HDMI™ and USB 3.0 B inputs that each HDMI™ support 4K resolution and 7.1 surround sound audio and two USB 3.0 A ports to connect USB3.0 supported devices. It features two USB-A port for Keyboard, mouse, three USB 3.0 A ports and mic in and audio out function, which makes the customers share a pair of Keyboard, mouse and other USB device between four USB/HDMI™ PCs and devices. You’ll be amazed at how this video switch maintains Ultra HD picture quality. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the switch is backward compatible with high-definition 1080p, you can rest assured any video source will look great in your digital signage application. Enjoy hassle-free operation with two switching modes: Manual port switching via front panel button or hotkey switching via the keyboard.

FEATURES

• Support two USB-A ports for USB keyboard, mouse and three USB 3.0 A ports for other USB devices up to 5Gbps.
• Support mic in and stereo audio out function with an on/off button control and LED indicator.
• Support manual switching: front panel button or hotkey switching via the keyboard.
• Support full 3D video format.
• Support high resolution up to 4K@60Hz YUV 4:4:4.
• Support HDCP 2.2 and HDCP 1.4.
• Support High Dynamic Range (HDR) video.
• Support Consumer Electronics Control.
• Support highest data transfer rate up to 6.0Gbps per channel (18Gbps all channels).
• TMDS clock can be up to 600MHz.
• Support 12bit per channel (36bit all channels) deep color.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
