INTRODUCTION

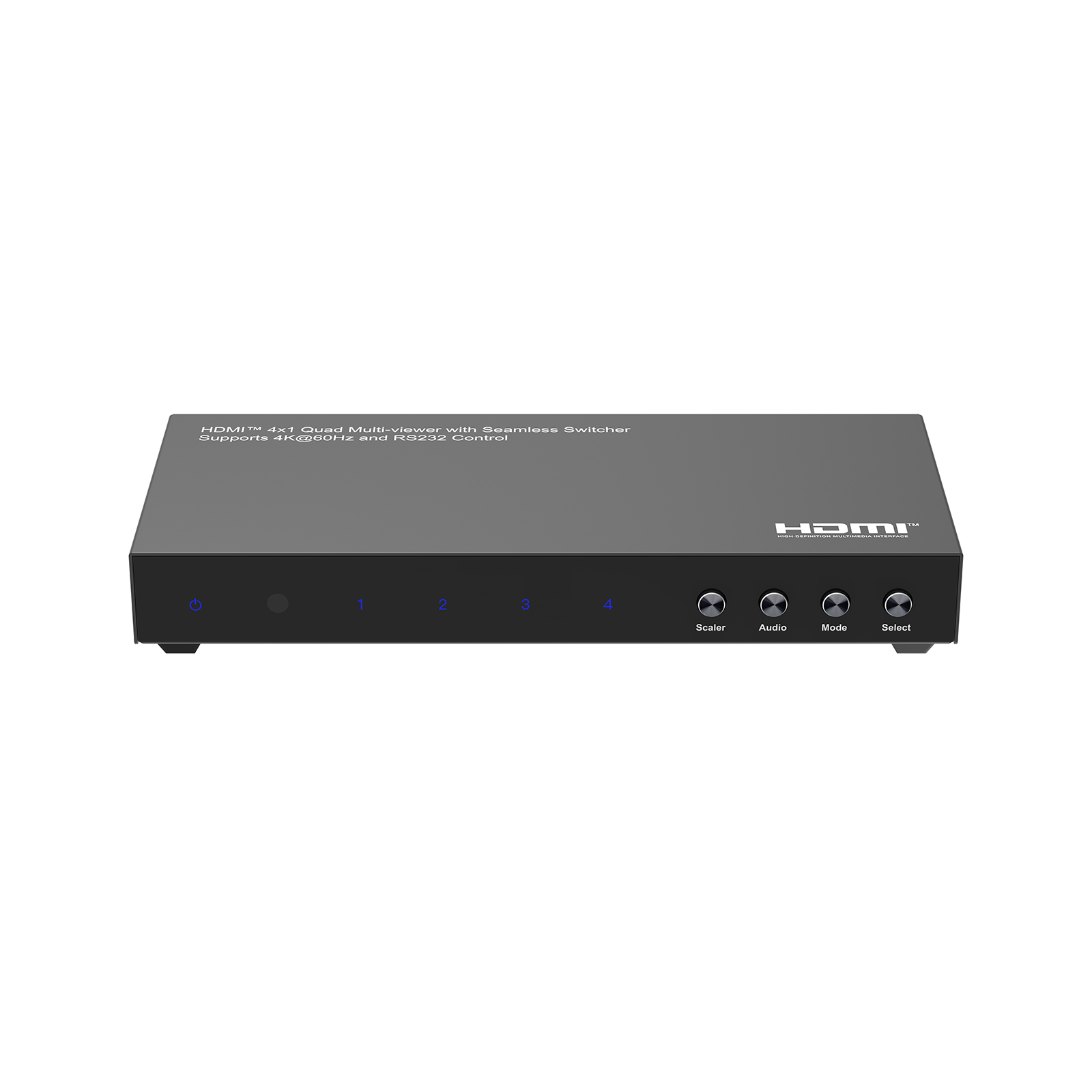

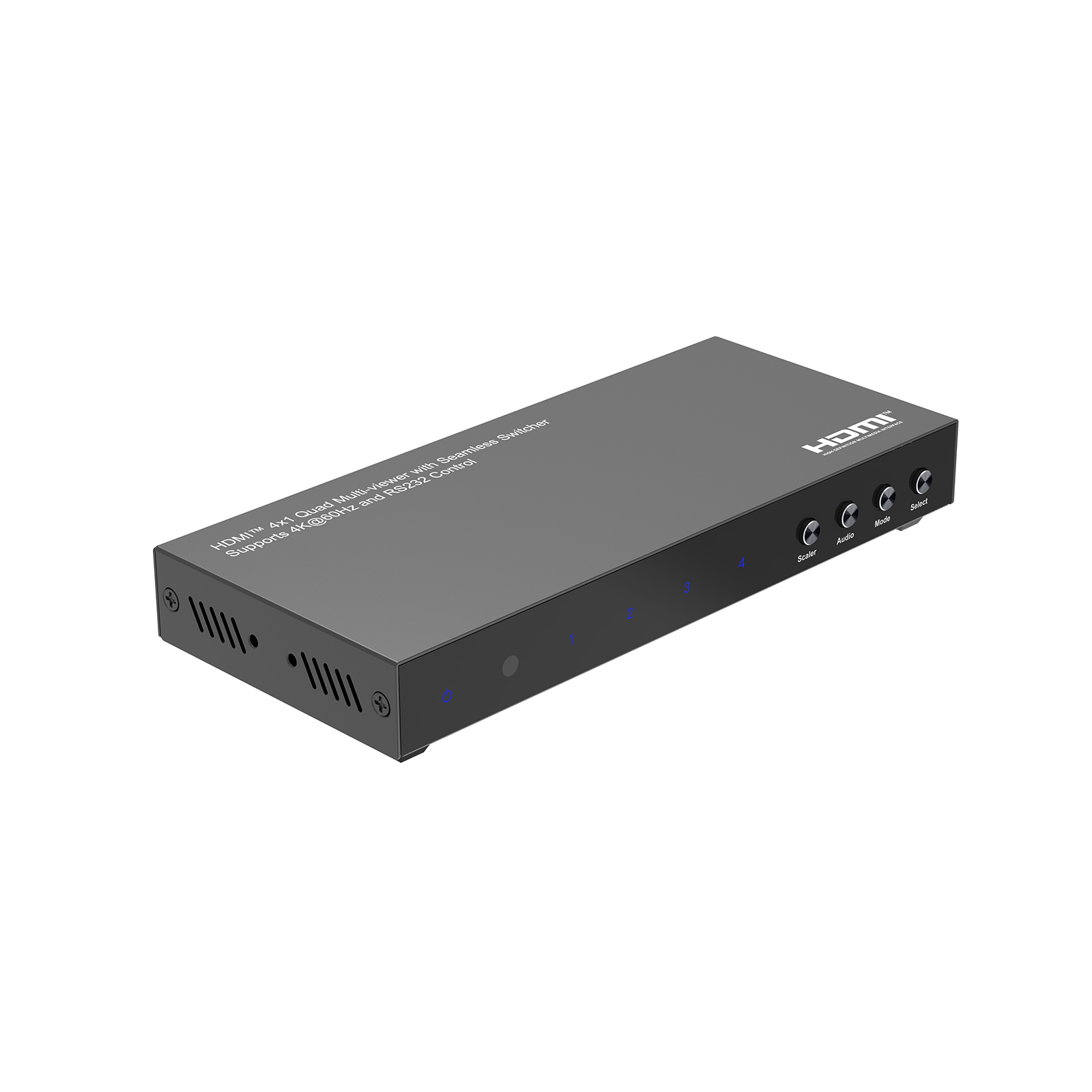

The HDMI™ 4×1 Quad Multi-Viewer with Seamless Switcher is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four HDMI™ input sources to be displayed on one screen with three multi-view modes. As a switcher, it can also seamlessly switch the four HDMI™ input freely. The product can be controlled by various ways, through the front panel button, IR control and RS232 control etc.
FEATURES
- Compliant with HDCP2.3, HDCP2.2 and HDCP1.4.
- Support 18Gbps video bandwidth.
- Support modify the input sources combination as needed at multi-viewer mode.
- Support change the output picture ratio to full screen or keep the original ratio at multi-viewer mode.
- Support change the PIP small picture location to any one of the four corner of the screen.
- Support power-off memory function which can keep the last setup status when power on.
- Support multiplexed HDMI 4-input and one output.
- Support up to 4K@60Hz high definition resolution.
- Support 4 by 1 quad multi-viewer and seamless switch (with same resolution).
- Support fast switching in multiview dispaly mode.
- Support scaler up, scaler down function.
- Support multi output resolution 1080p/1600P/4K@30Hz/4K@60Hz.
- Support digital audio format LPCM/AC3/DTS.
- Support audio extractor via analog and optica fiber audio ports.
- Support manual control, IR remote control and RS232 control.
SPECIFICATIONS

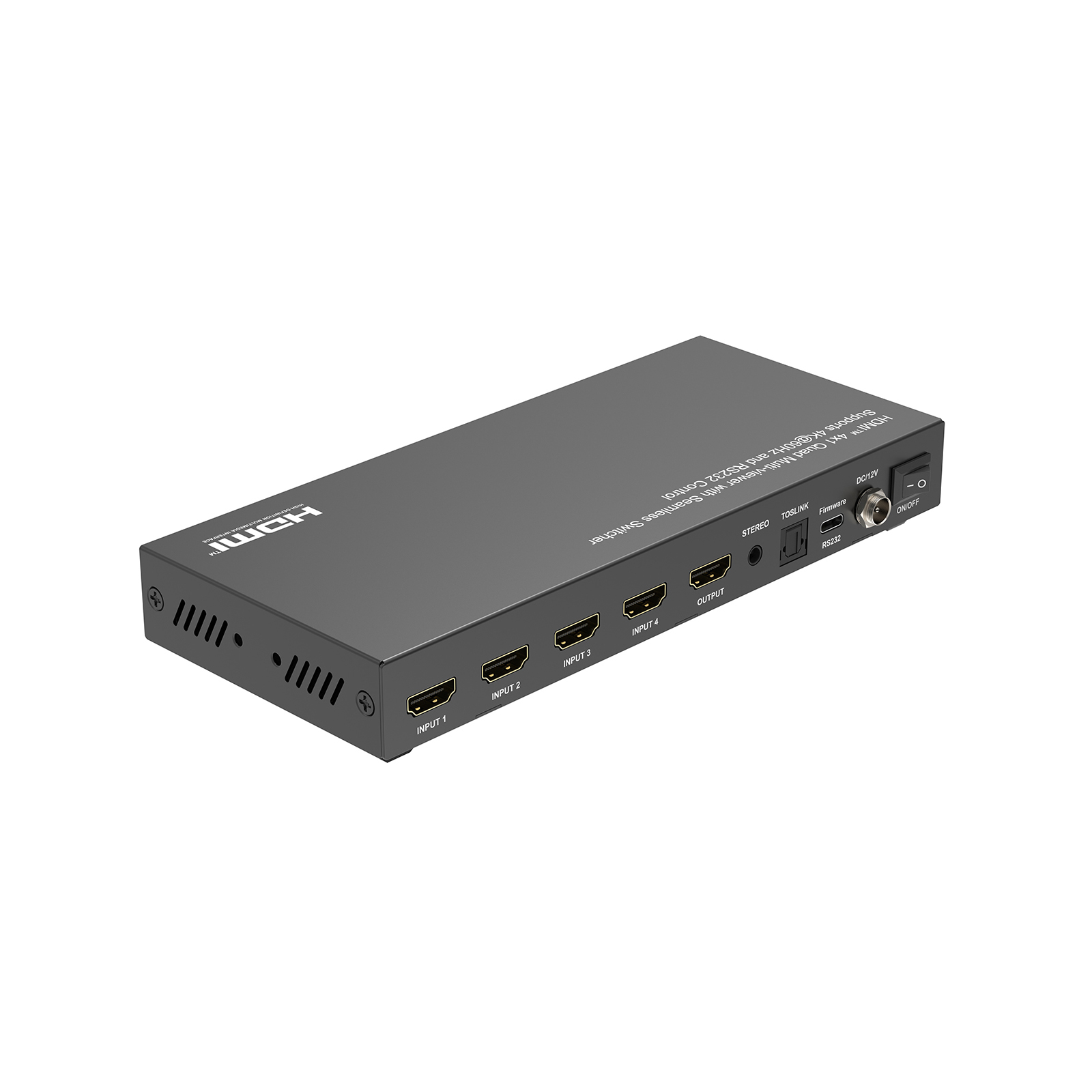

Input Ports
- HDMI x 4
Output Ports
- HDMI x 1, Stereo x 1,SPDIF x 1
Vertical Frequency Range
- 24/25/30/50/60Hz
Video Amplifier Bandwidth
- 6Gbps/600MHz per channel(18Gbps all channel)
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive(50&60Hz)
- 480p,576p,720p,1080p,4K@24/25/30/50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- 12V DC @2A
Power Consumption (Max)
- 24W
Matrix Switcher Unit Cert
- CE, FCC, RoHS
Power Supply Cert
- CE, FCC, RoHS
Power Adapter Standard
- US, EU, UK, AU Standard etc.
Dimension(LxWxH)
- 197.5x 91×18.5mm
Net Weight
- 350g
Material
- Metal
User Manual
- English
Note: Specifications are subject to change without notice.
