INTRODUCTION

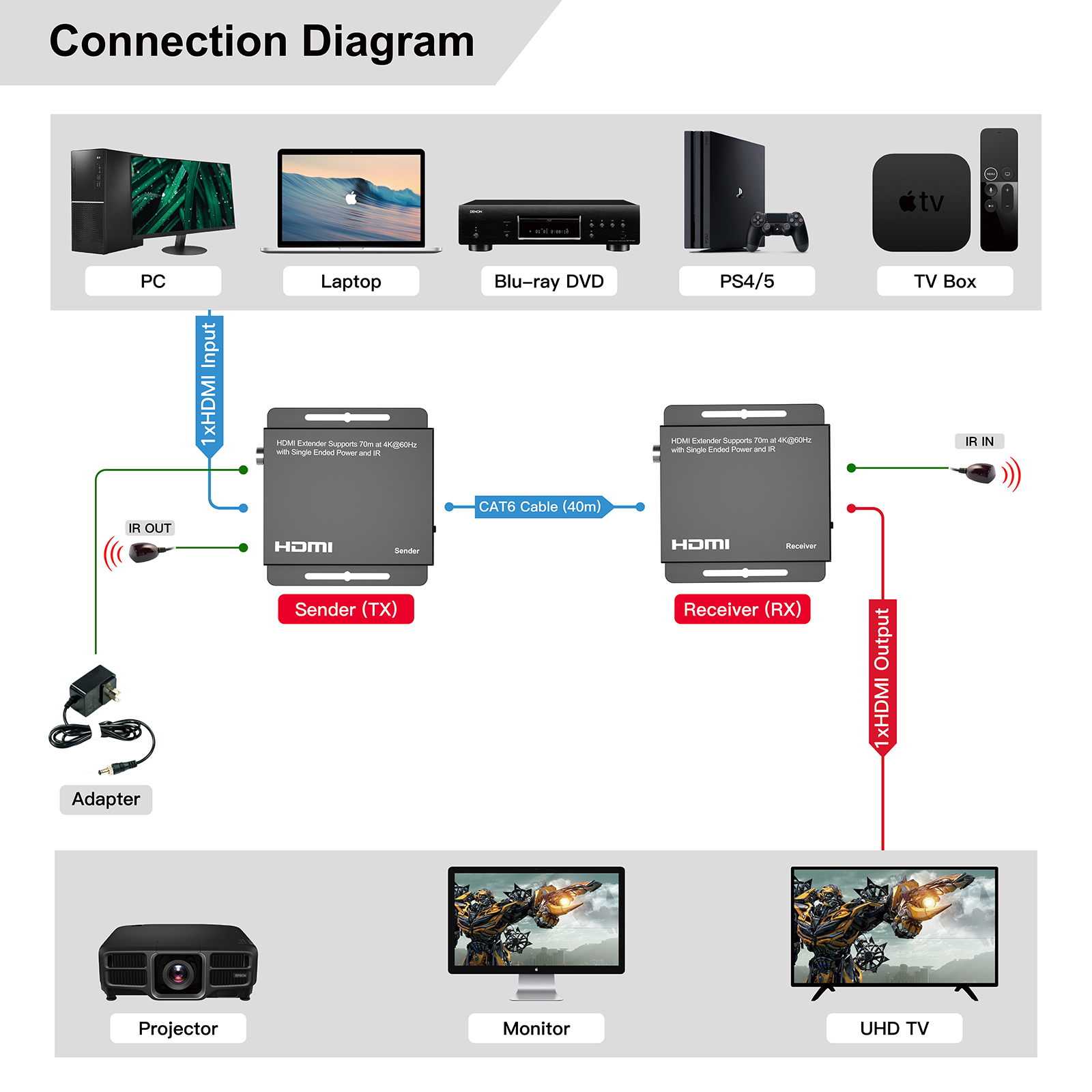

The HDMI™ extender is an ideal device for remote viewing. It features an extension function and extends the input of the HDMI™ signal to the remote output up to 70m(230 feet), perfect for point-to-point digital signage applications that require high-quality HDMI™ video up to 4K@60Hz 4:4:4. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination. It features a single-ended power supply enabling either the transmitter or receiver to be powered by a single 12V power supply.
FEATURES
- Support high resolution up to 4K@60Hz YUV 4:4:4 at 70m.
- Support HDCP 2.2 and HDCP 1.4.
- Support High Dynamic Range (HDR) video.
- Support EDID and HDCP bypass.
- Support the highest data transfer rate up to 6.0Gbps per channel (18Gbps for all channels).
- TMDS clock can be up to 600MHz.
- Support 12bit per channel (36bit all channels) deep color.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, and Dolby Digital.
- Supports single-ended power supply feature with 12V power transmitting from sender to receiver.
SPECIFICATIONS

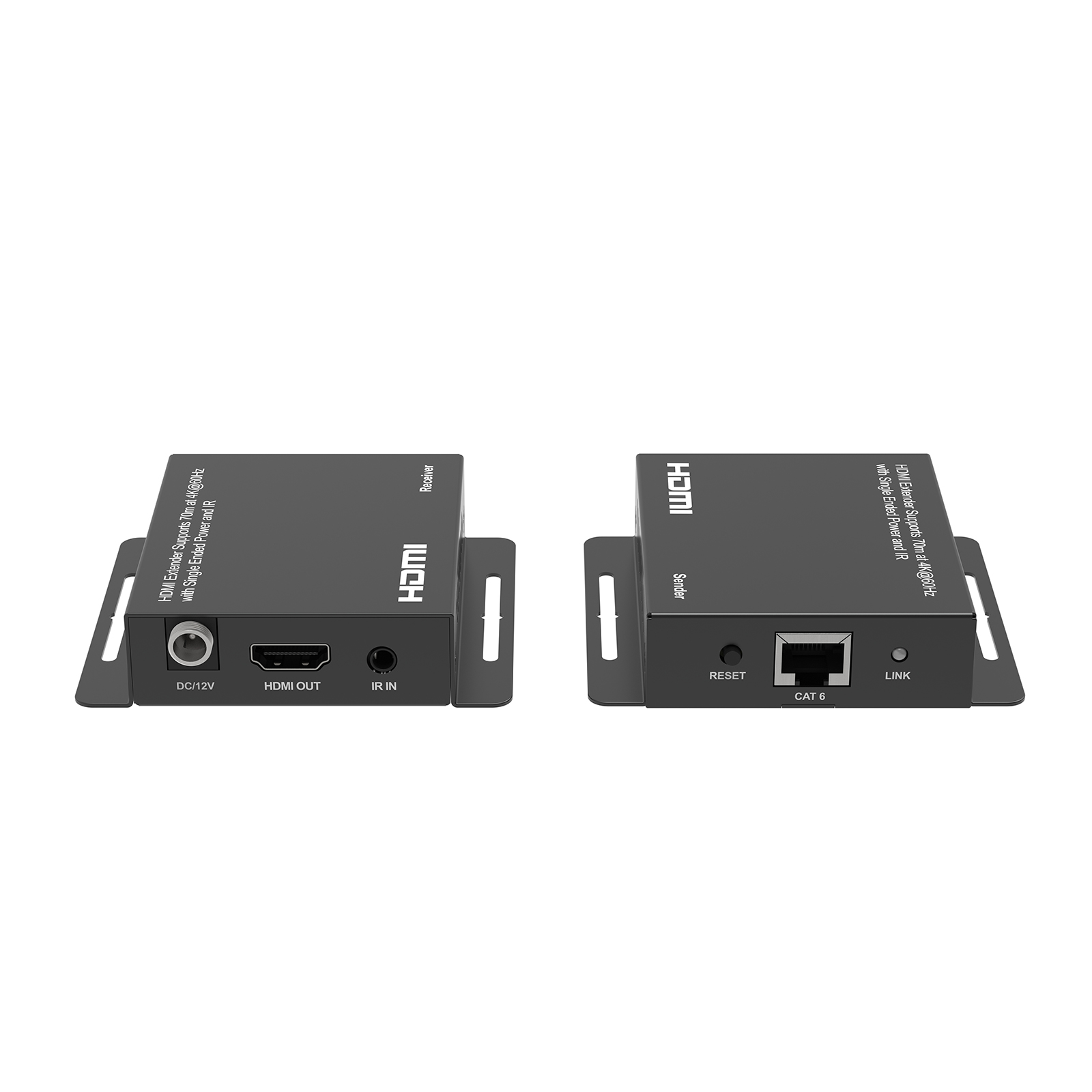

Input Port
- HDMI x 1, RJ45 x 1, IR IN x 1
Output Port
- HDMI x 1, RJ45 x 1, IR OUT x 1
Extensions Distance
- 70m(230 feet) for 4K@60Hz 4:4:4
Vertical Frequency Range
- 50/60Hz
IR Frequency Range
- 20-60KHz
Interlaced Resolutions(50&60Hz)
- 480i, 576i, 1080i
Progressive Resolutions(50&60Hz)
- 480p, 576p, 720p, 1080p, 4K@60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- DC 12V
Power Consumption (Max)
- TX: 1.3W, RX: 1.6W
Extender Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 75.7x56x22.6mm
Net Weight
- TX/RX: 78g
Material
- Metal
User Manual
- English Version
Note: Specifications are subject to change without notice.
