INTRODUCTION

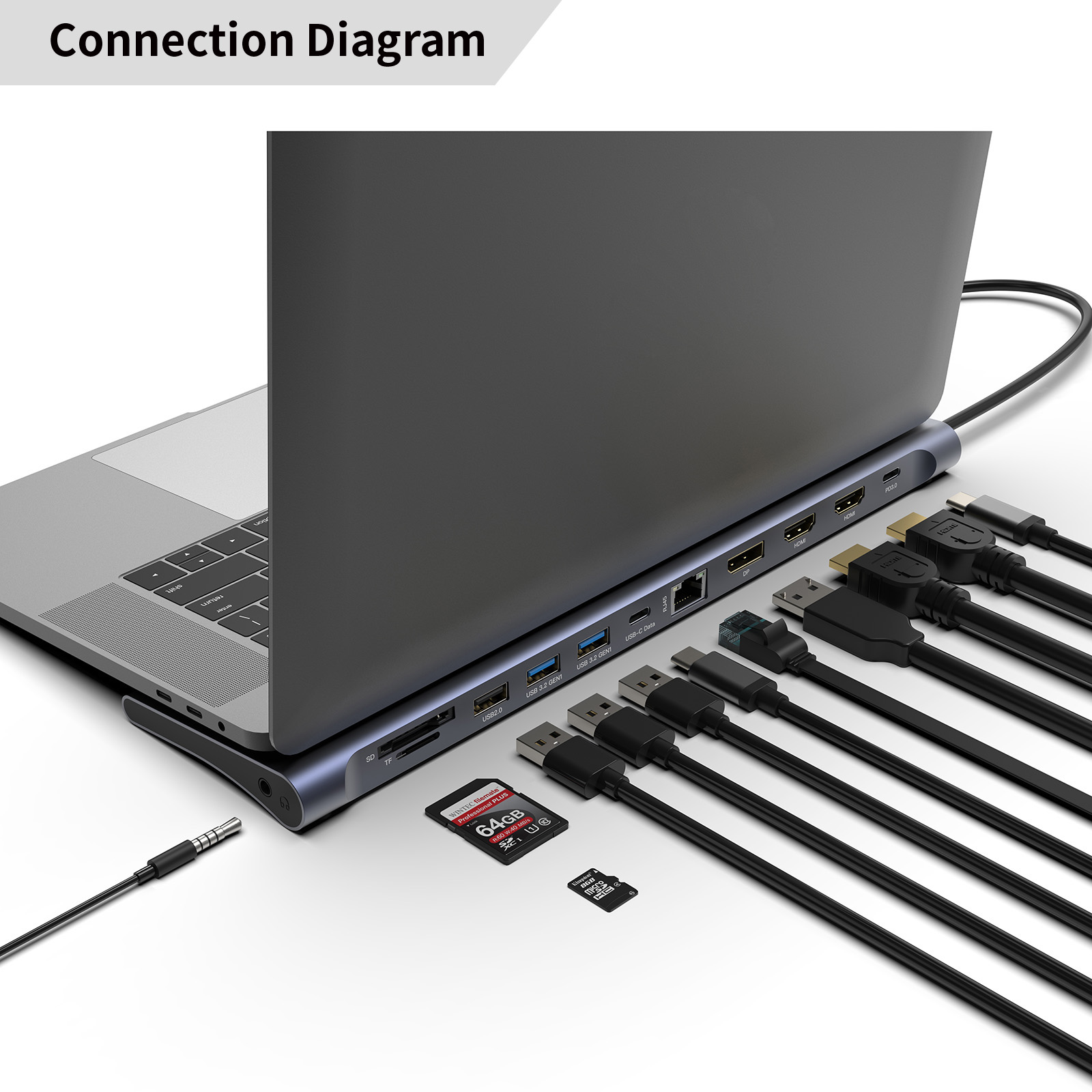

This USB 3.1 Type-C™to HDMI x 2 4K60Hz + DisplayPort 4K@60Hz+ USB-C (USB3.0 Data) + USB3.0/3.1/3.2 Gen1(5Gbps) x2 +USB2.0 + RJ45(1000M) + 3.5mm + TF + SD + PD(100W) lets you output HDMI™ /DisplayPort video and 3.5mm audio and connecting two USB 3.0 devices, USB-C(USB3.0 Data), USB2.0, SD 2.0 and TF 2.0 card, one RJ45 Gigabit(1000M) Ethernet port with power deliver function up to PD 3.0 100W from a USB 3.1 Type-C™ device such as a MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™ laptop. It lets you utilize the versatile USB 3.1 Type-C™ port on your portable device. USB 3.1 Type-C™ is a reversible connector, so it doesn’t matter which way you plug it in, the docking station will always work, saving you the hassle and embarrassment of fiddling with your device when you’re trying to deliver a presentation.
The docking station lets you harness the video capabilities built into your USB 3.1 Type-C™ connection, to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the docking station is backward compatible with 1080p displays, which makes it a great accessory for home, office, or other workspace applications.

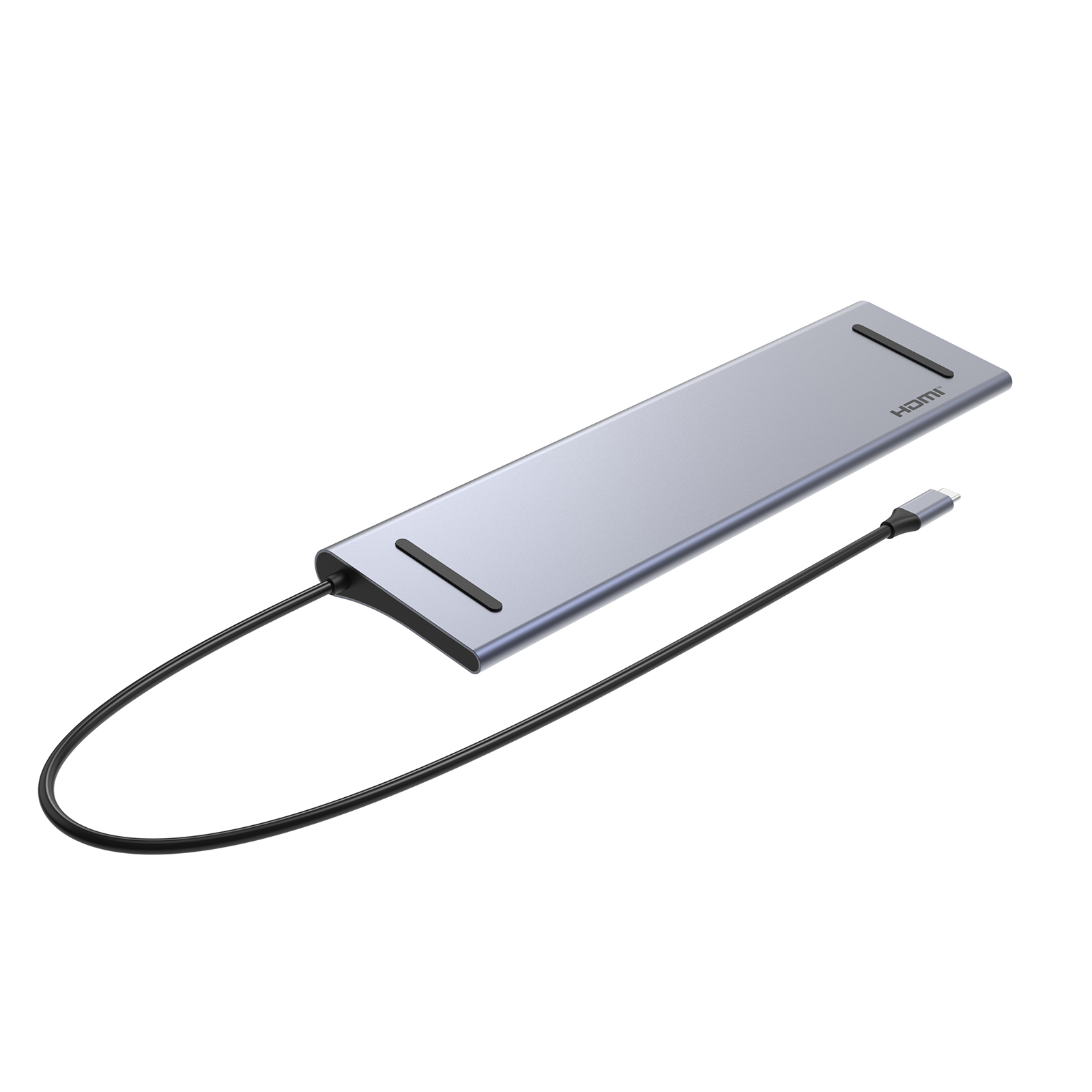

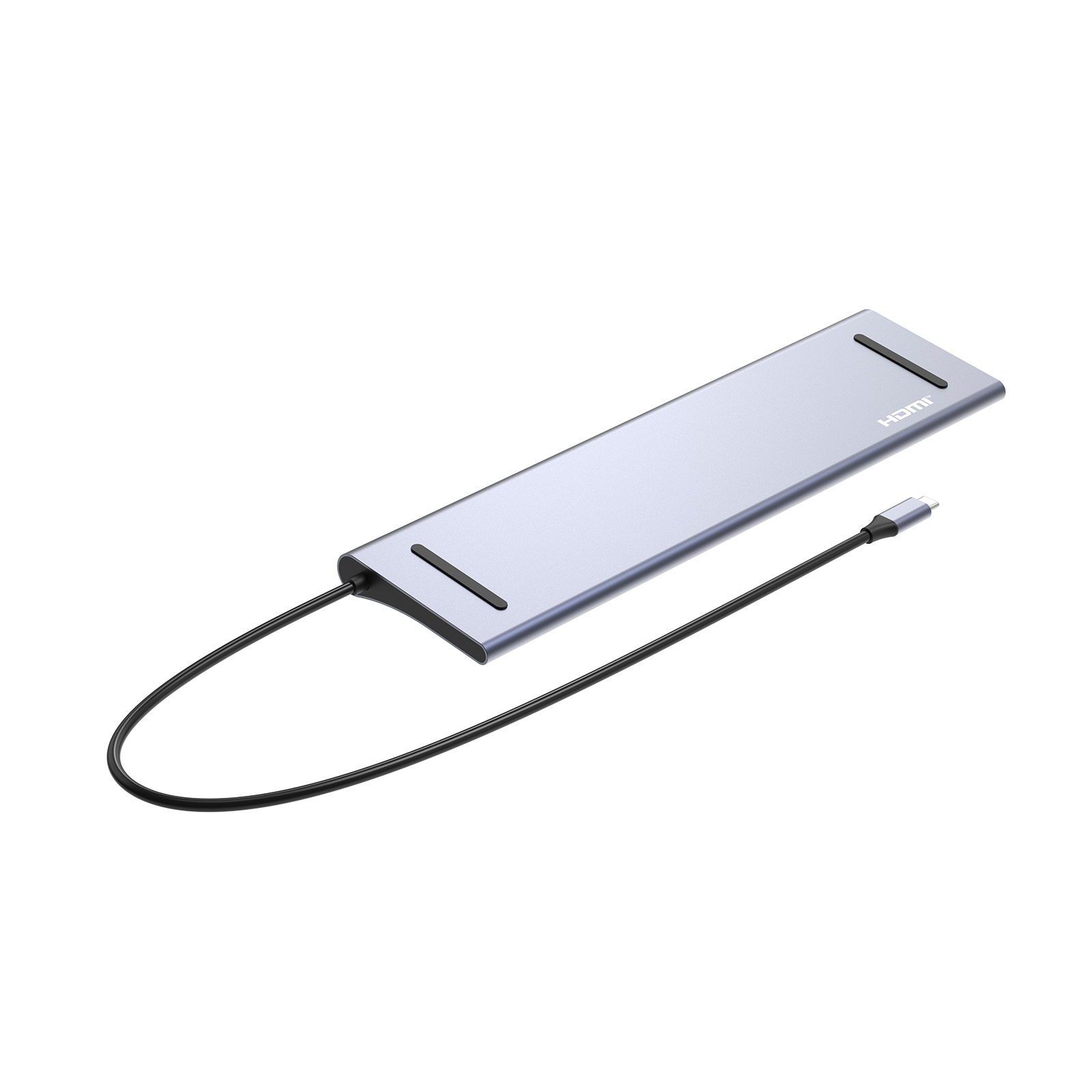

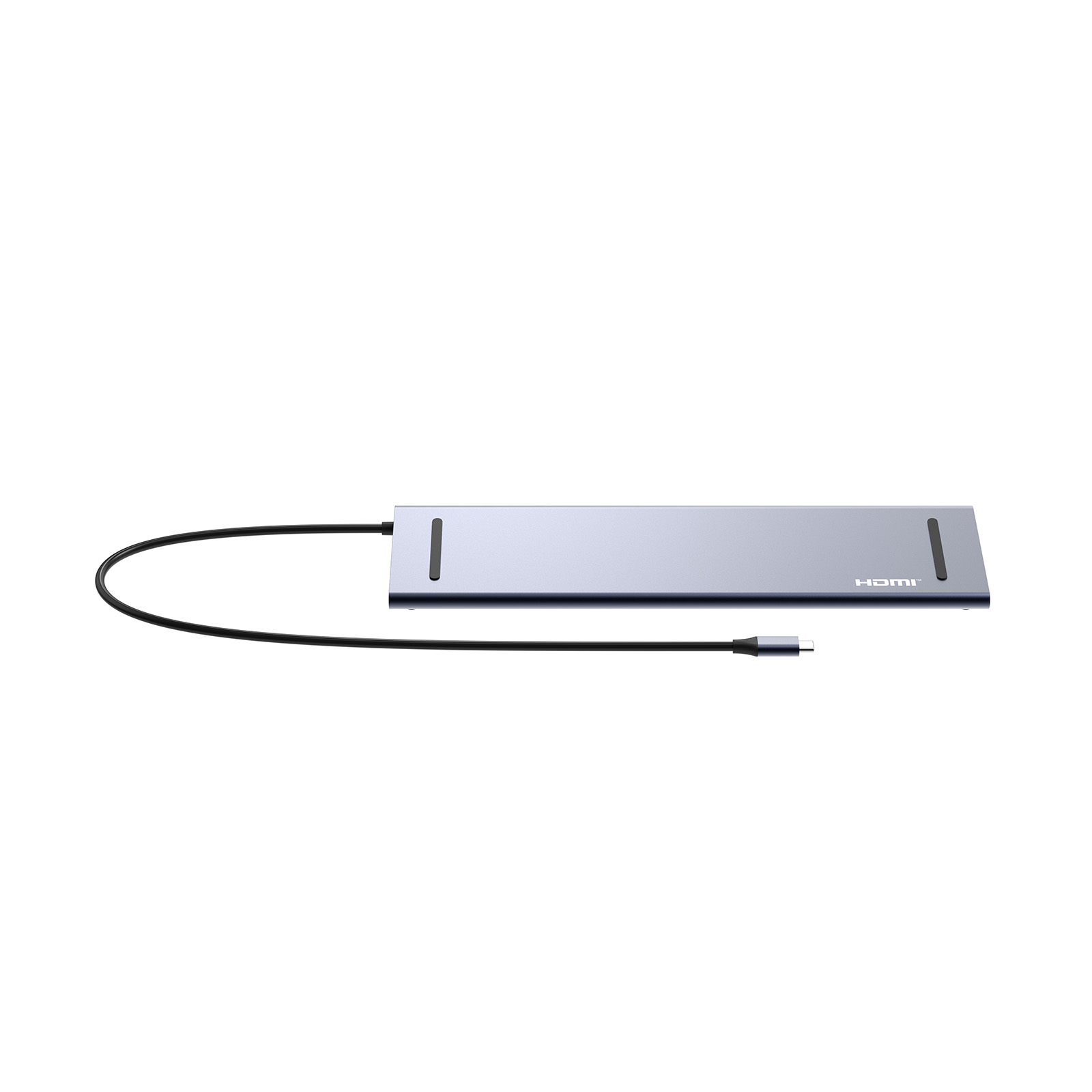

This USB 3.1 Type-C™ video docking station is highly portable with a lightweight design, the perfect accessory for your MacBook, MacBook Pro, Lenovo YOGA, or Chromebook Pixel™, fitting easily into your laptop bag or carrying case.
FEATURES
- Support UHD video resolutions up to 4K@60Hz for single display on HDMI connection or DisplayPort connect.
- Support Dual-video output with resolutions up to 4K@60Hz or triple-video output with resolutions up to 4K@30Hz.
- Support two USB 3.0 port and one USB-C (data only) up to 5Gbps data transmission with 5V 0.9A power supply capacity.
- Support one USB 2.0 port up to 480Mbps data transmission with 5V 0.5A power supply capacity.
- Support power deliver function up to 100W with PD 3.0 standard.
- Support 10/100/1000Mbps for Gigabit (1000M) Ethernet port.
- Support SD and TF card data transfer rates up to 6MB/s and follow the SD2.0/TF2.0 standard.
- Support 3.5mm stereo audio output.
- Built-in USB Type C cable to be connected directly to your source device.
- Compatible with Thunderbolt 3.
- Compatible with DP1.4 alt mode.
- Compact design with aluminium alloy + ABS.
- Plug and play with no driver or software installation at all.
SPECIFICATIONS
Input Ports
- USB-C Male, USB-C Female x 1 (PD)
Output Ports

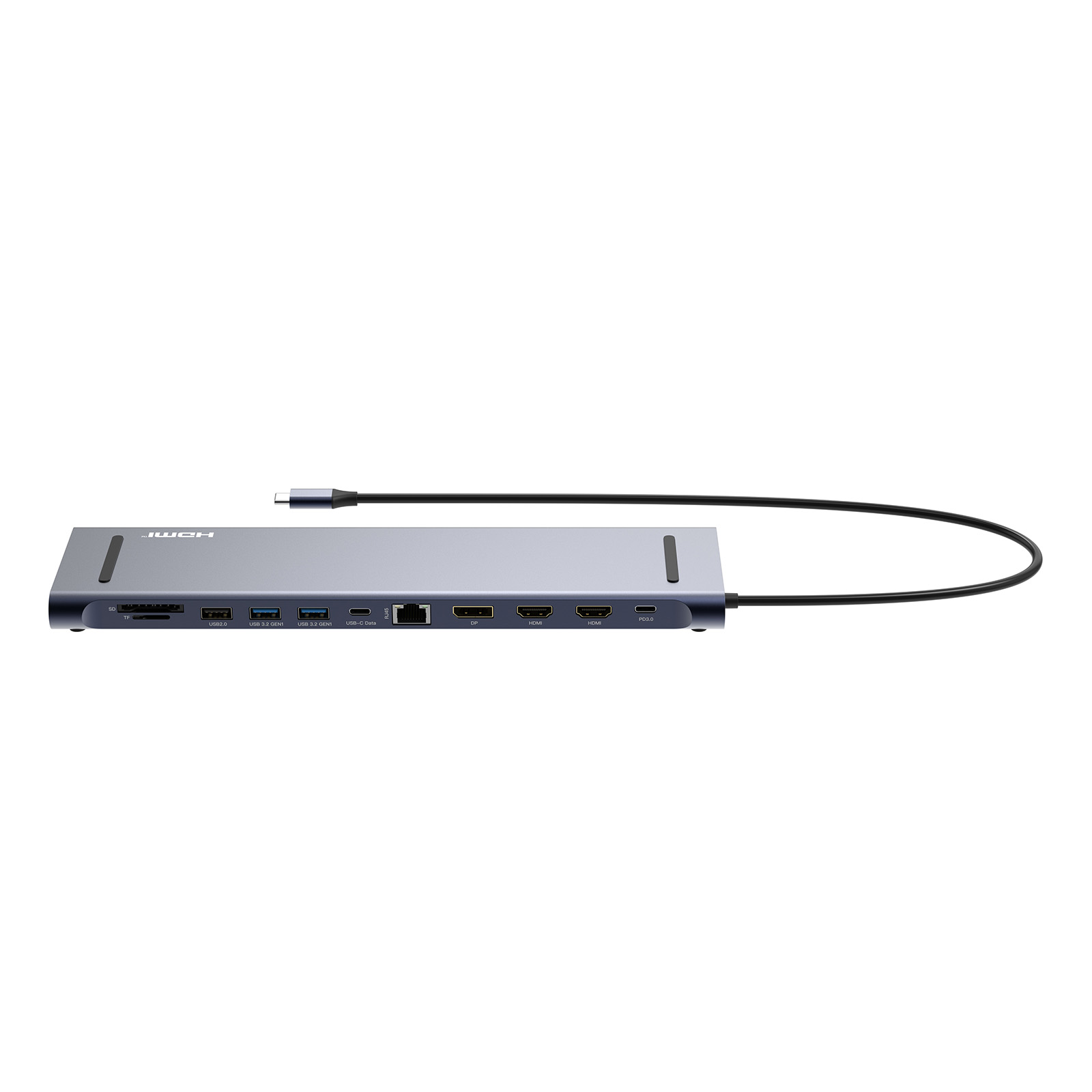

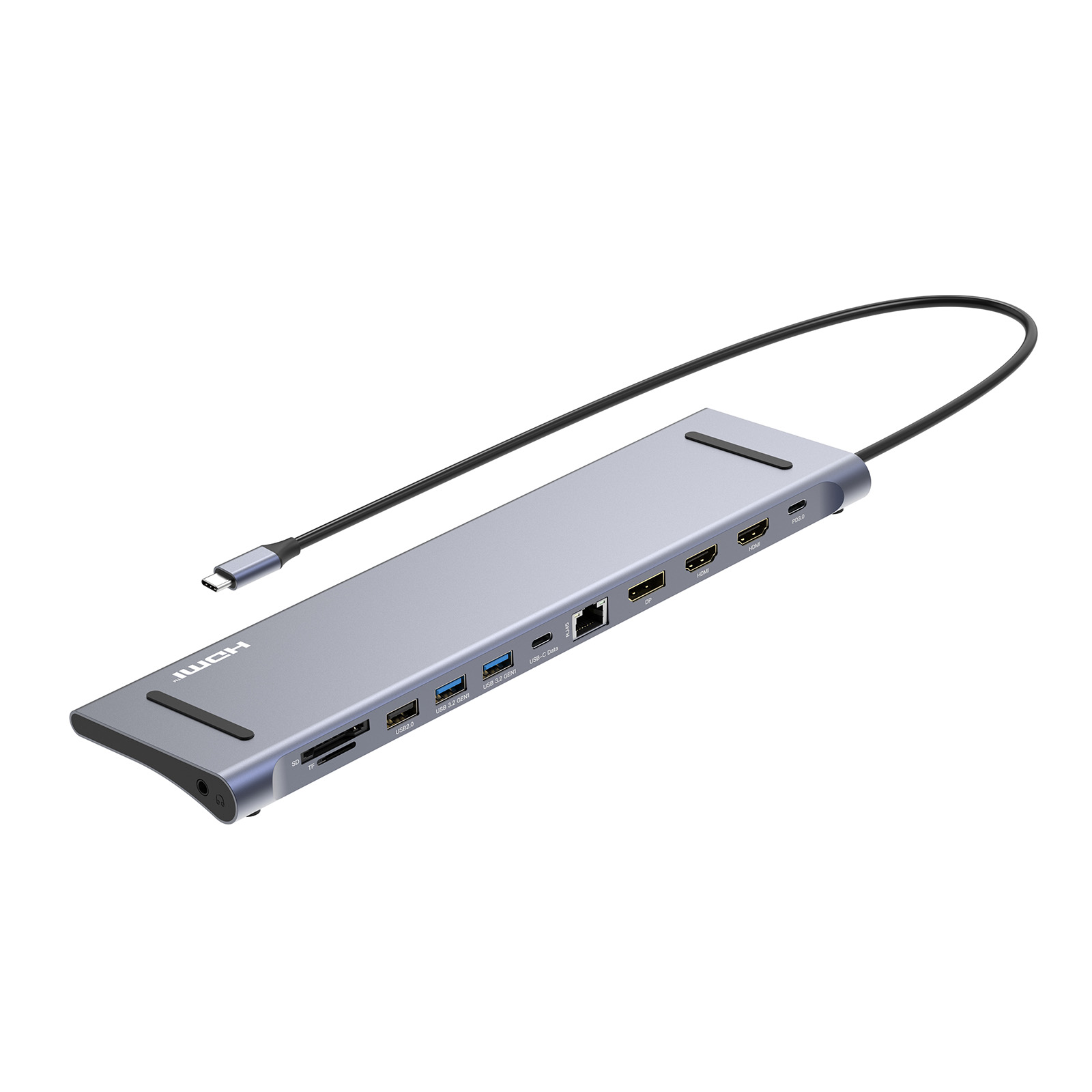

- HDMI x 2, DisplayPort x 1, USB-C(data) x 1, USB 3.0 x 2, USB2.0 x 1, SD x1, TF x1, RJ45 x 1, 3.5mm x 1
Data Transmission Rate (Max)
- 5Gbps
Data Transmission Standard
- USB 3.0 ( USB 3.1 GEN 1)
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 3.4Gbps/340MHz per channel(10.2Gbps all channels)
Interlaced(50&60Hz)
- 480i, 576i, 1080i
Progressive(50&60Hz)
- 480p, 576p, 720p, 1080p, 4K@24/30Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 60℃
Storage Humidity
- 5% to 90% RH non-condensation
Unit Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 284x80x17mm
Net Weight
Material
- Aluminium Alloy + ABS
User Manual
- English Version
