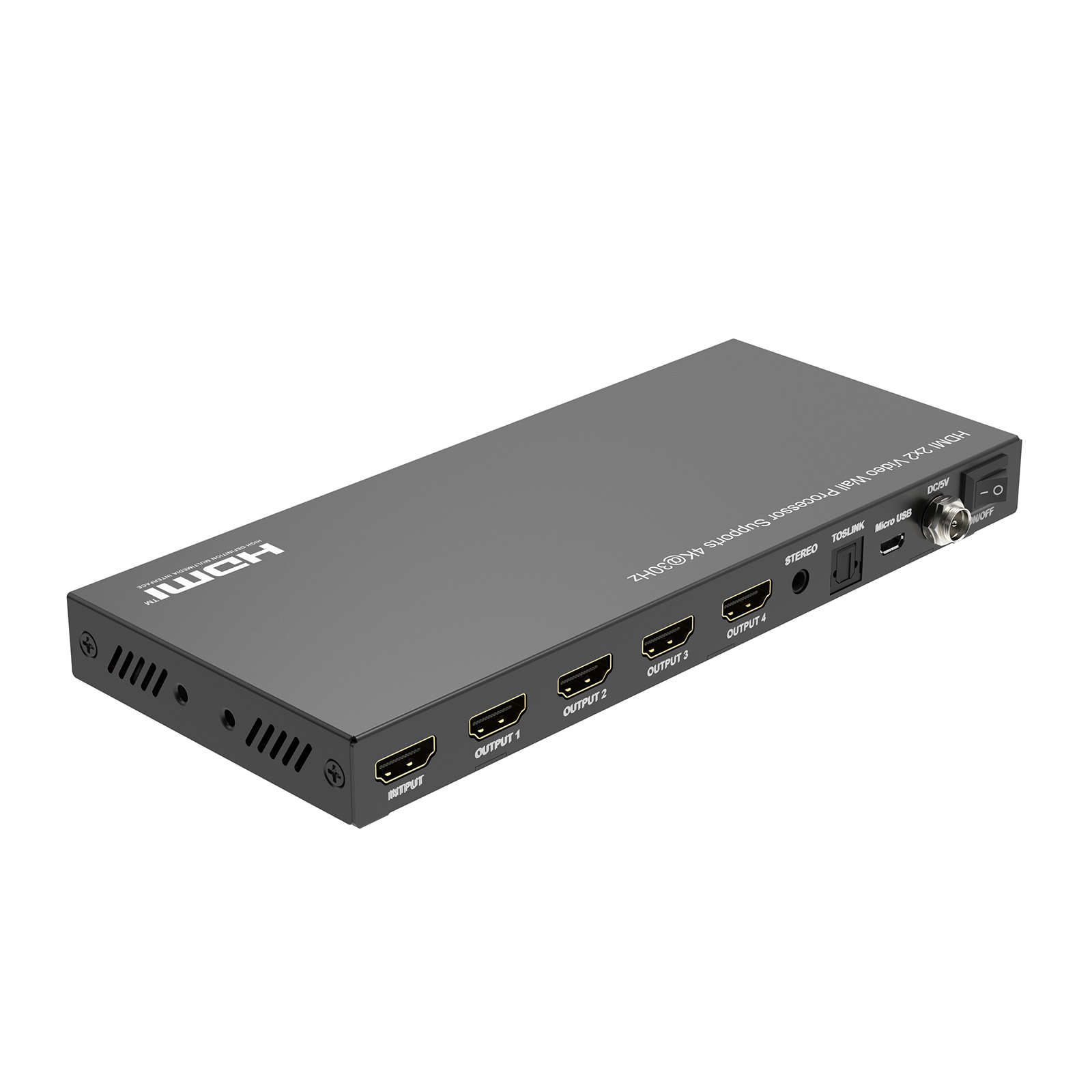

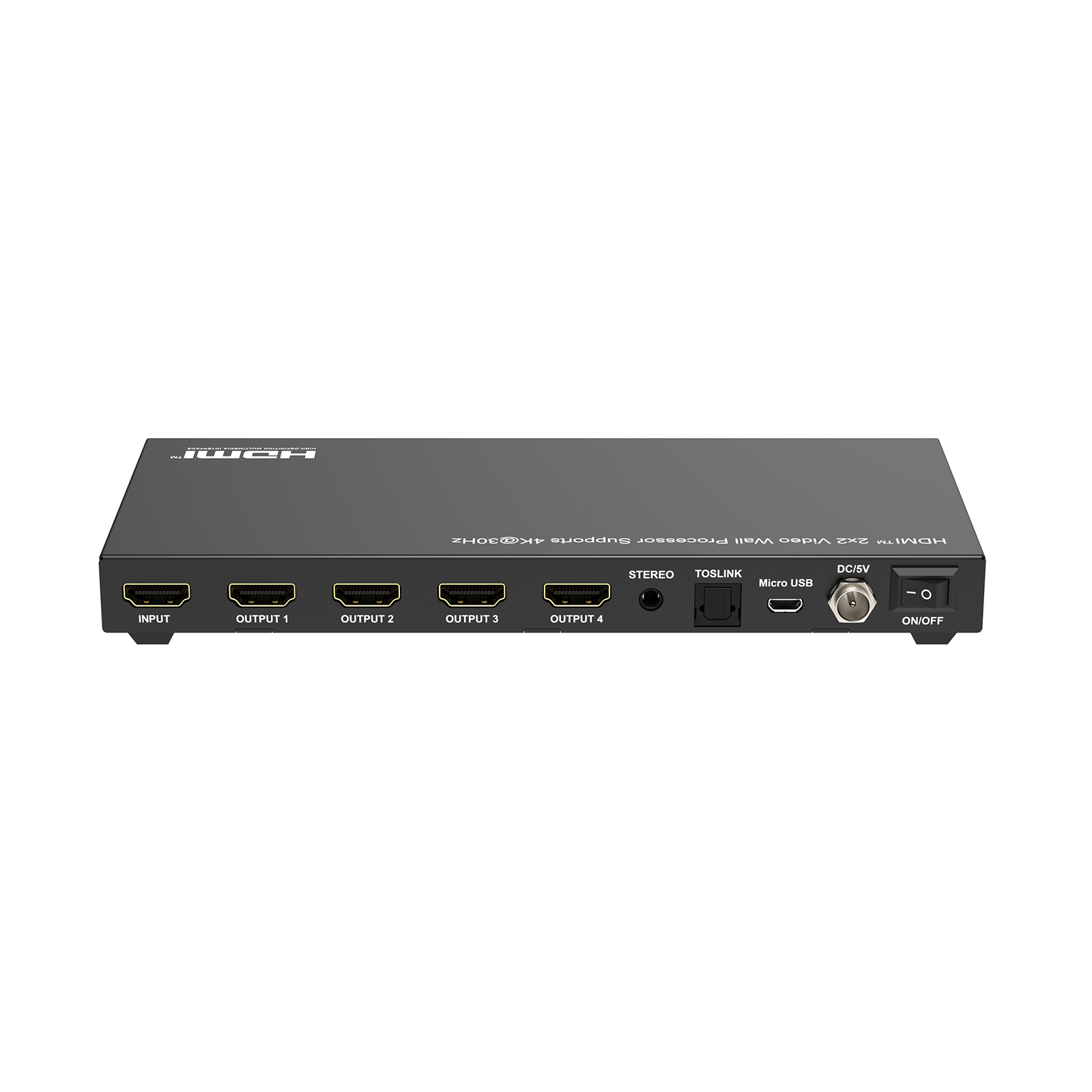

HDMI™ 2×2 Video Wall Processor Supports 4K@30Hz and RS232 CONTROL

INTRODUCTION

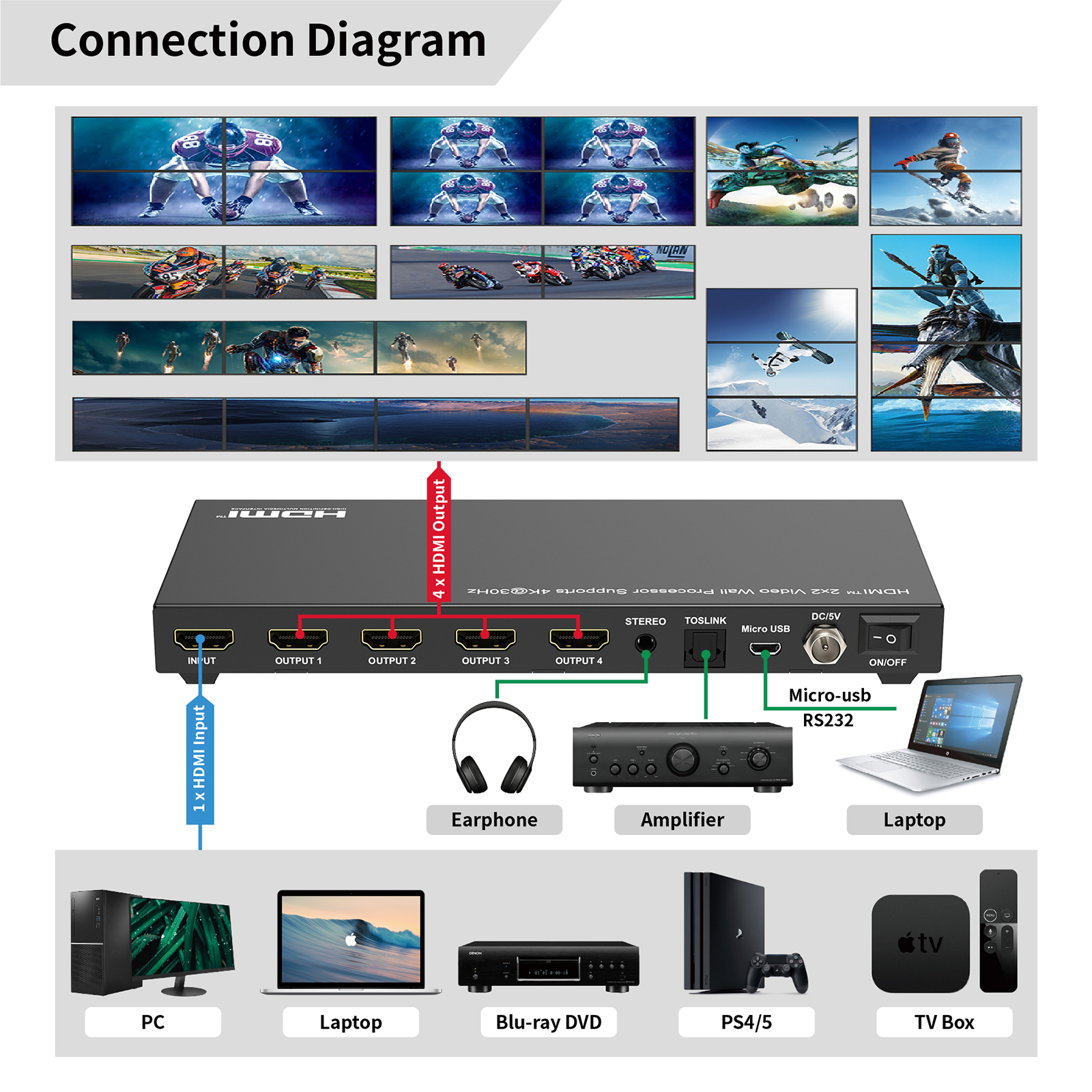

The HDMI™ 2×2 Video Wall Processor lets you share a single HDMI source image to 4 TV panel displays in a 2 by 2 Video Wall configuration for large-screen presentation. It provides high-quality image scaling, easy operation controls, and adjustable bezel compensation, which are all essential for the video wall system to perform smoothly as envisioned. This video wall system is a cost-effective screen controller solution for multiple LCD screens stacked up together and creating one supers-size screen for display. Your image screen is limitless as your imagination goes. See your multimedia content displayed bold, bright, and big enough for advertising, entertainment, and information display. Customers can combine 2,3 or 4 flat panel LCD TVs into one larger display for a 2×2, 1×2, 1×3 or 1×4 screen through the help of this HDMI video wall controller processor. The product can be controlled in various ways, such as the front panel button, IR control RS232 control, etc.

FEATURES

• Support one HDMI input resolution up to 4K@30Hz.
• Support four HDMI outputs resolution fixed to 1080p@60Hz.
• Support various display modes selectable via front button and remote control to combine up to 4 flat panel LCD TVs into one larger display.
• Support on screen display (OSD) function for mode and port information.
• Support power-off memory function to keep the last setup status when power on.
• Supports independent output rotation ( 180 % ) for each HDMI output port ( Mode 1 Only ).
• Support digital audio format LPCM/AC3/DTS.
• Support manual control, IR remote control and RS232 control.

SPECIFICATIONS
