INTRODUCTION

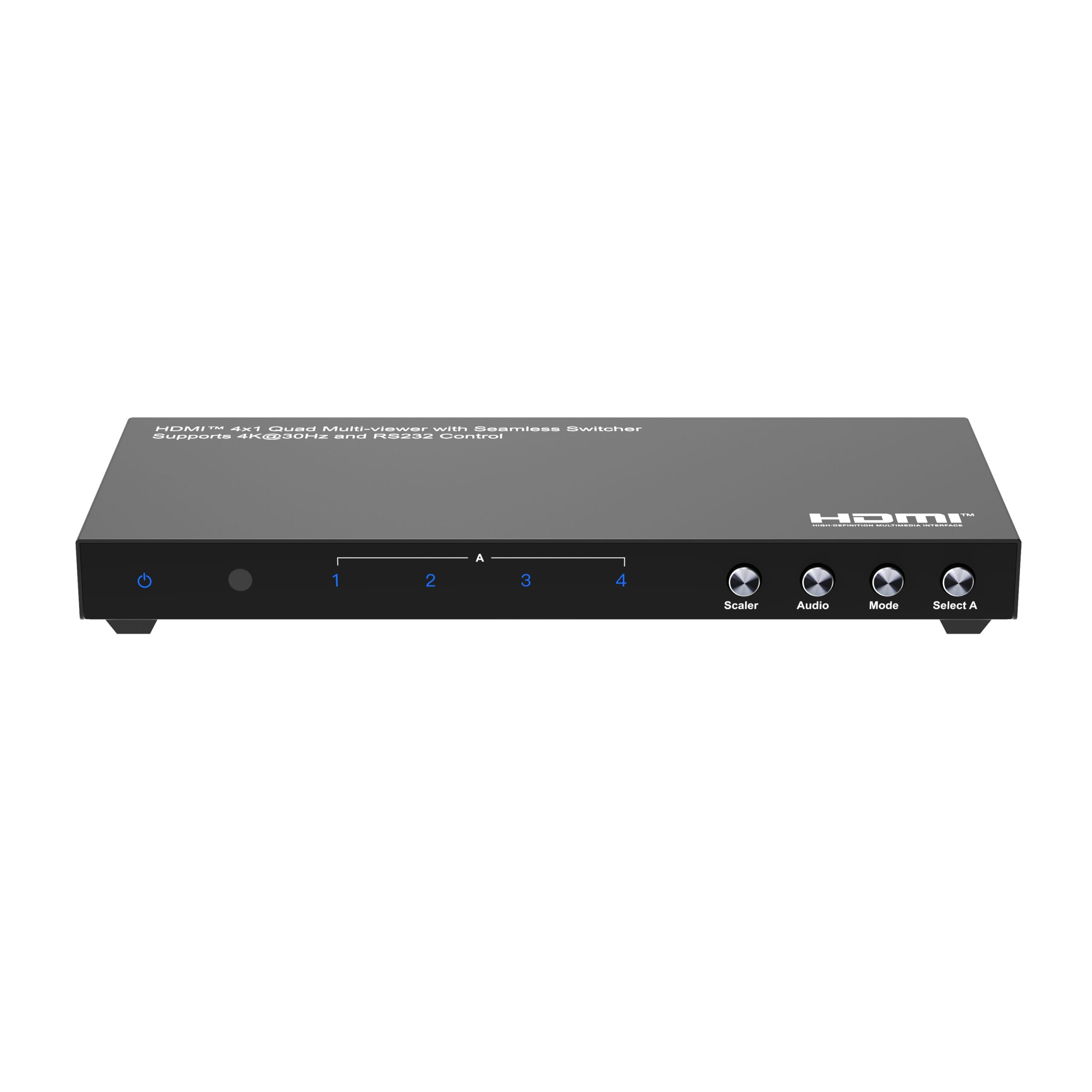

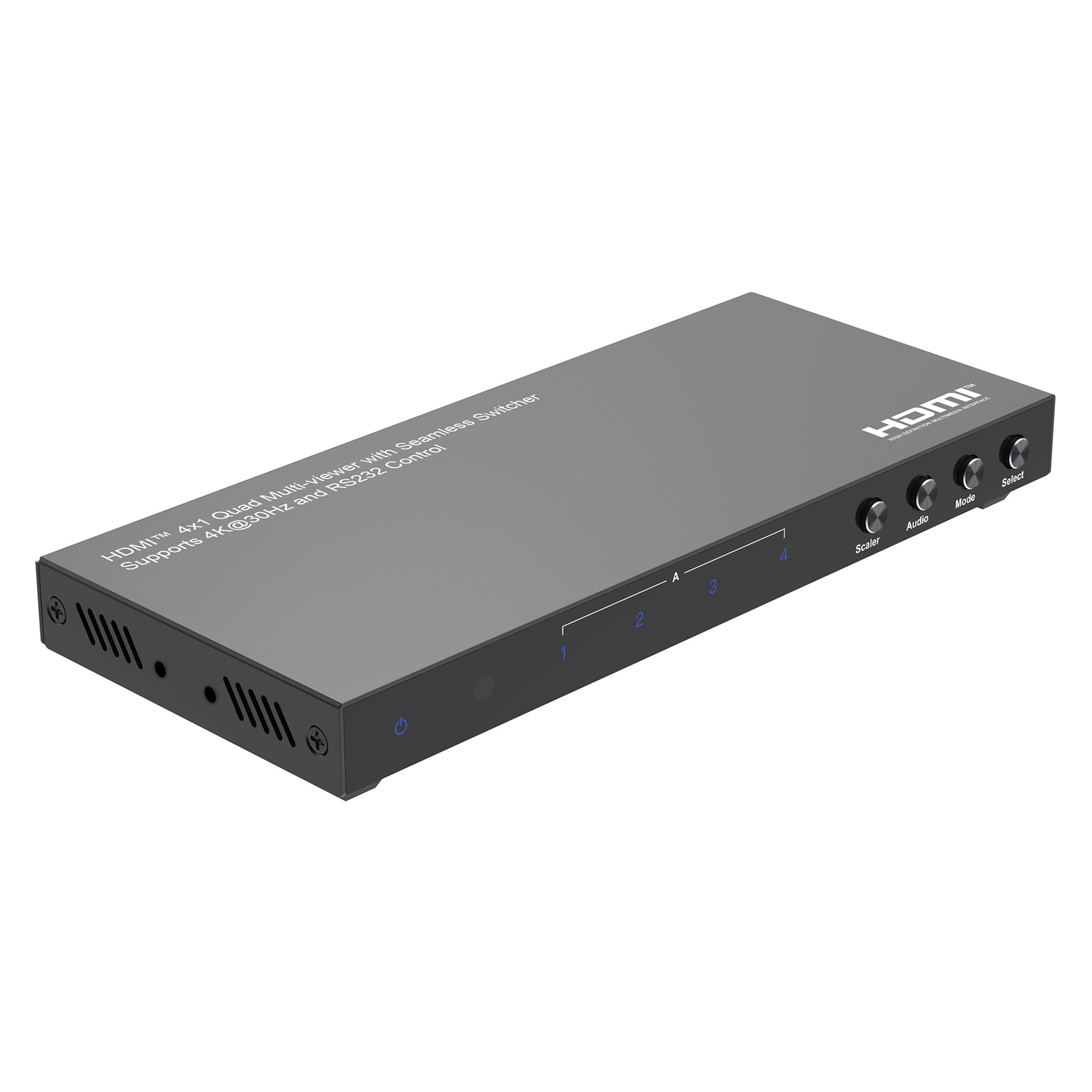

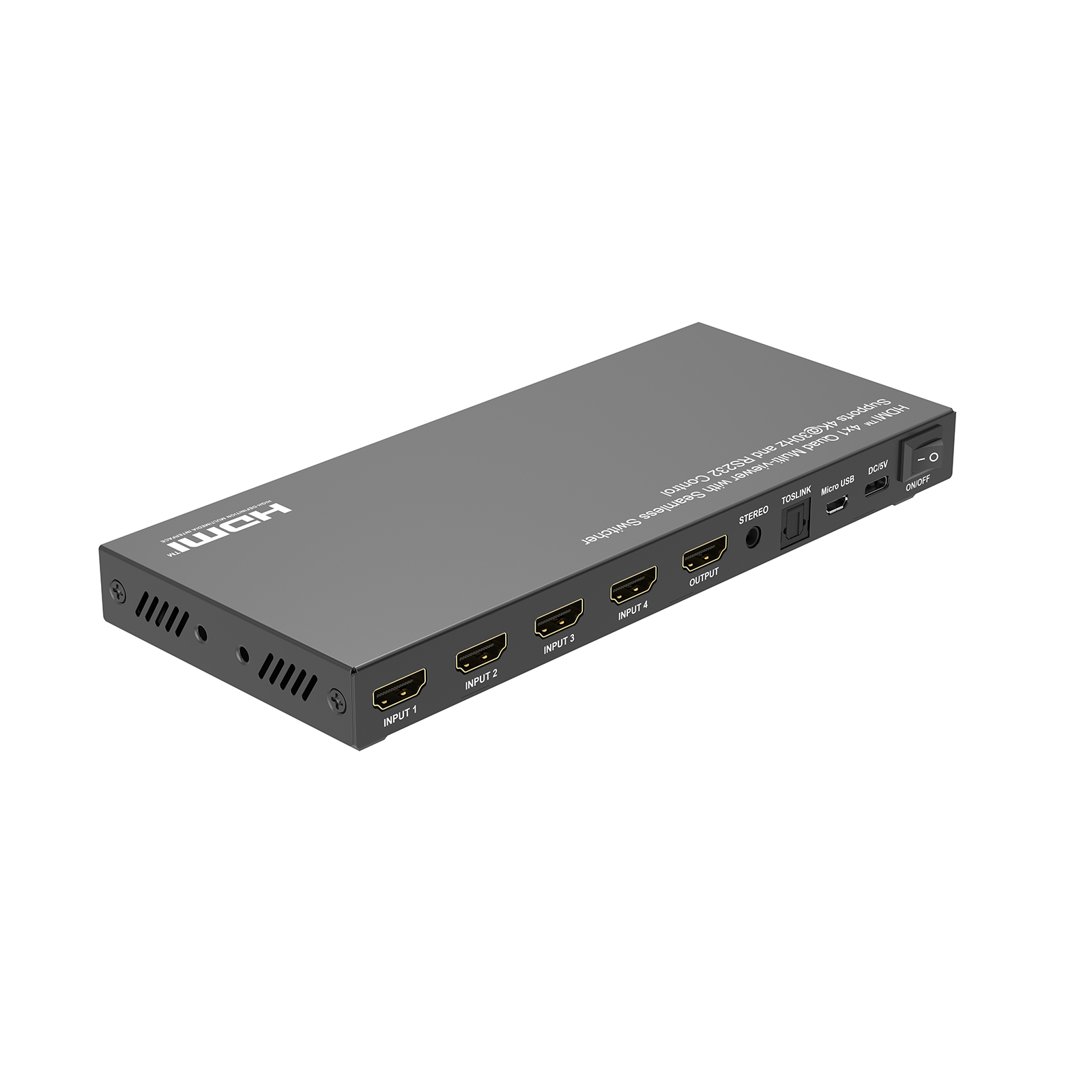

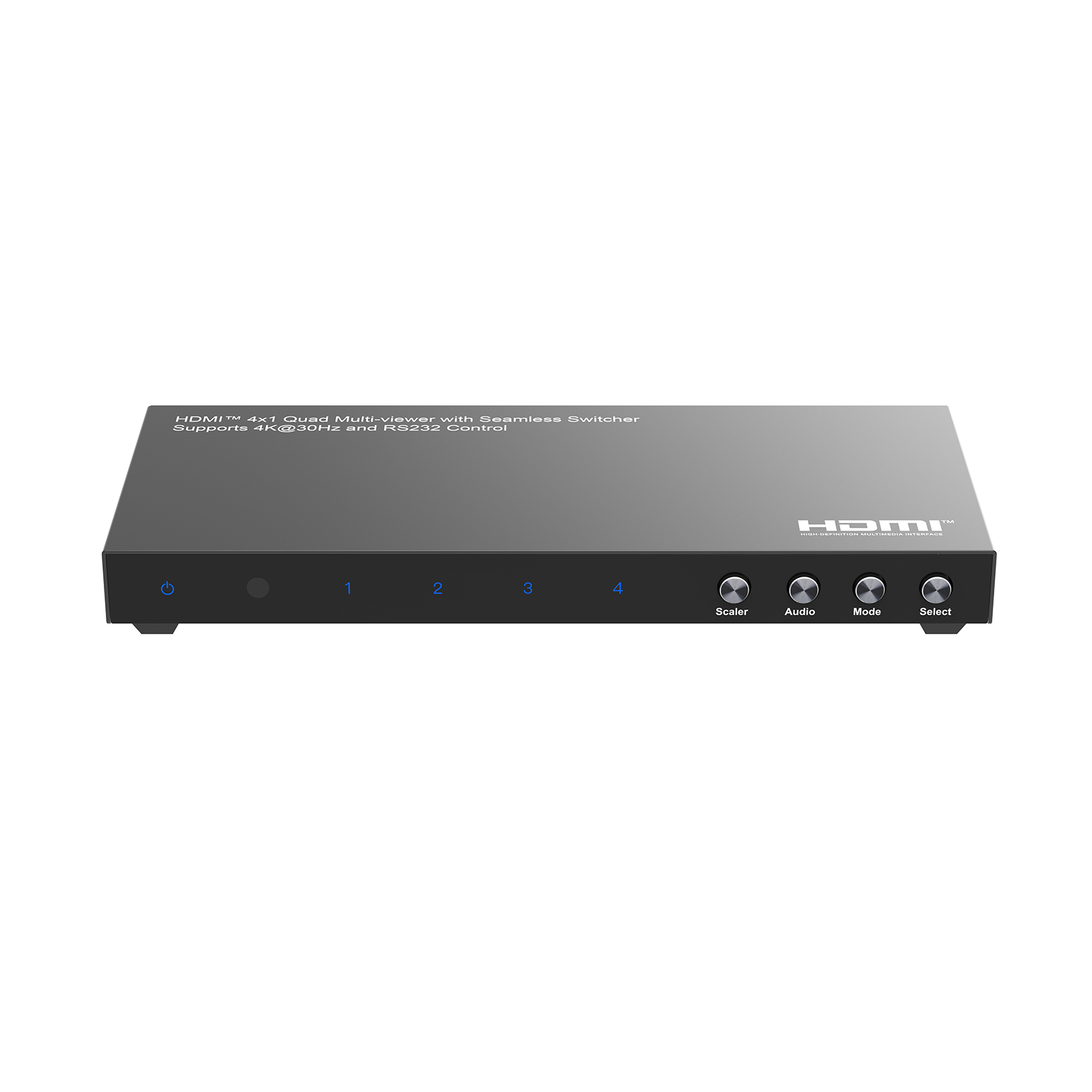

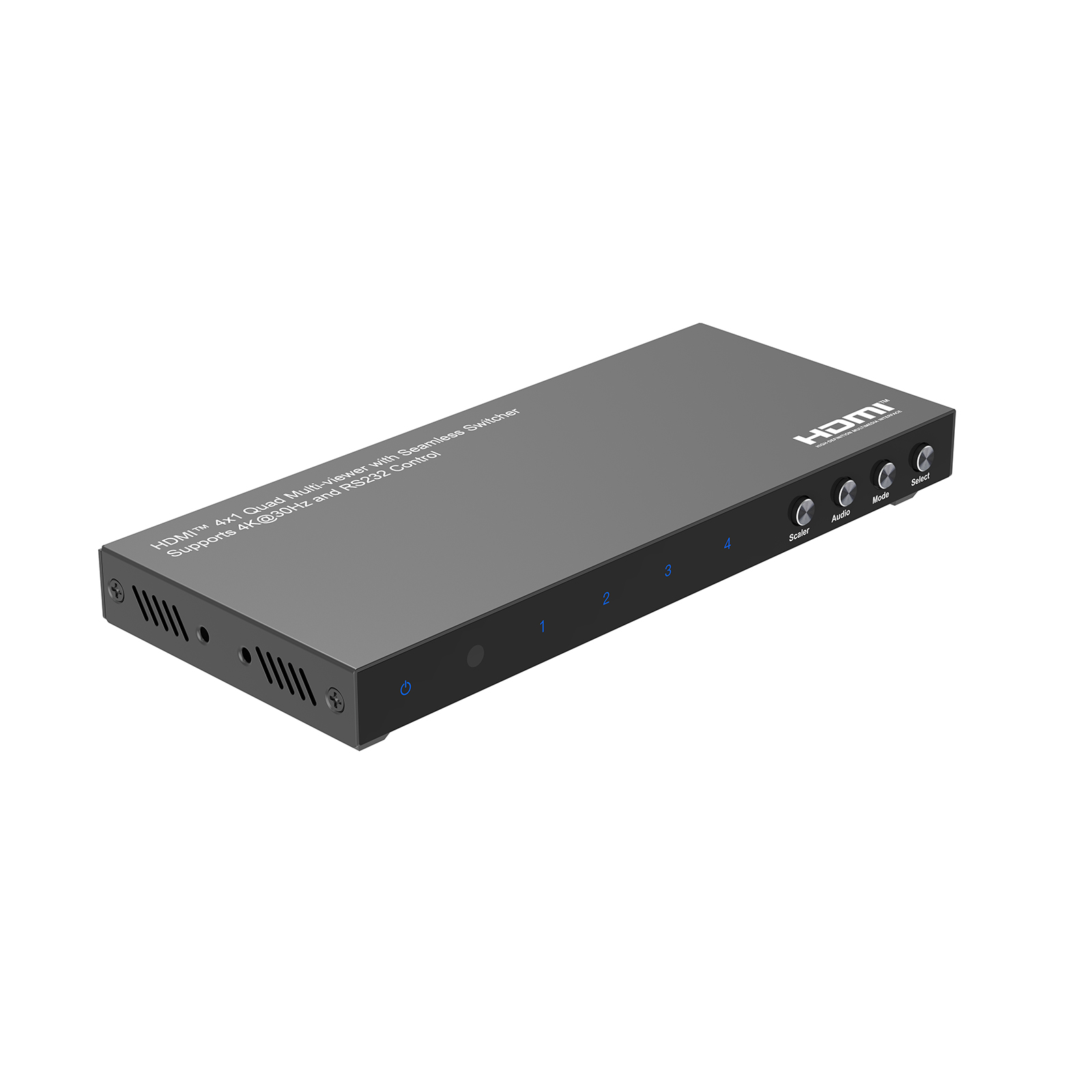

The HDMI™ 4×1 Quad Multi-Viewer with Seamless Switcher is a high-performance 4×1 Quad Multi-Viewer with seamless switcher. It supports four HDMI™ input sources to be displayed on one screen with three multi-view modes. As a switcher, it can also seamlessly switch the four HDMI™ inputs freely. The product can be controlled in various ways, through the front panel button, IR control RS232 control, etc.
FEATURES
- Compliant with HDCP1.4.
- Support modify the input sources combination as needed at multi-viewer mode.
- Support change the output picture ratio to full screen or keep the original ratio at multi-viewer mode.
- Support change the PIP small picture location to any one of the four corner of the screen.
- Support power-off memory function which can keep the last setup status when power on.
- Support multiplexed HDMI 4-input and one output.
- Support up to 4K@30Hz high definition resolution.
- Support 4 by 1 quad multi-viewer and seamless switch (with same resolution).
- Support scaler up, scaler down function.
- Support multi output resolution 1080p/1600P/4K@30Hz.
- Support digital audio format LPCM/AC3/DTS.

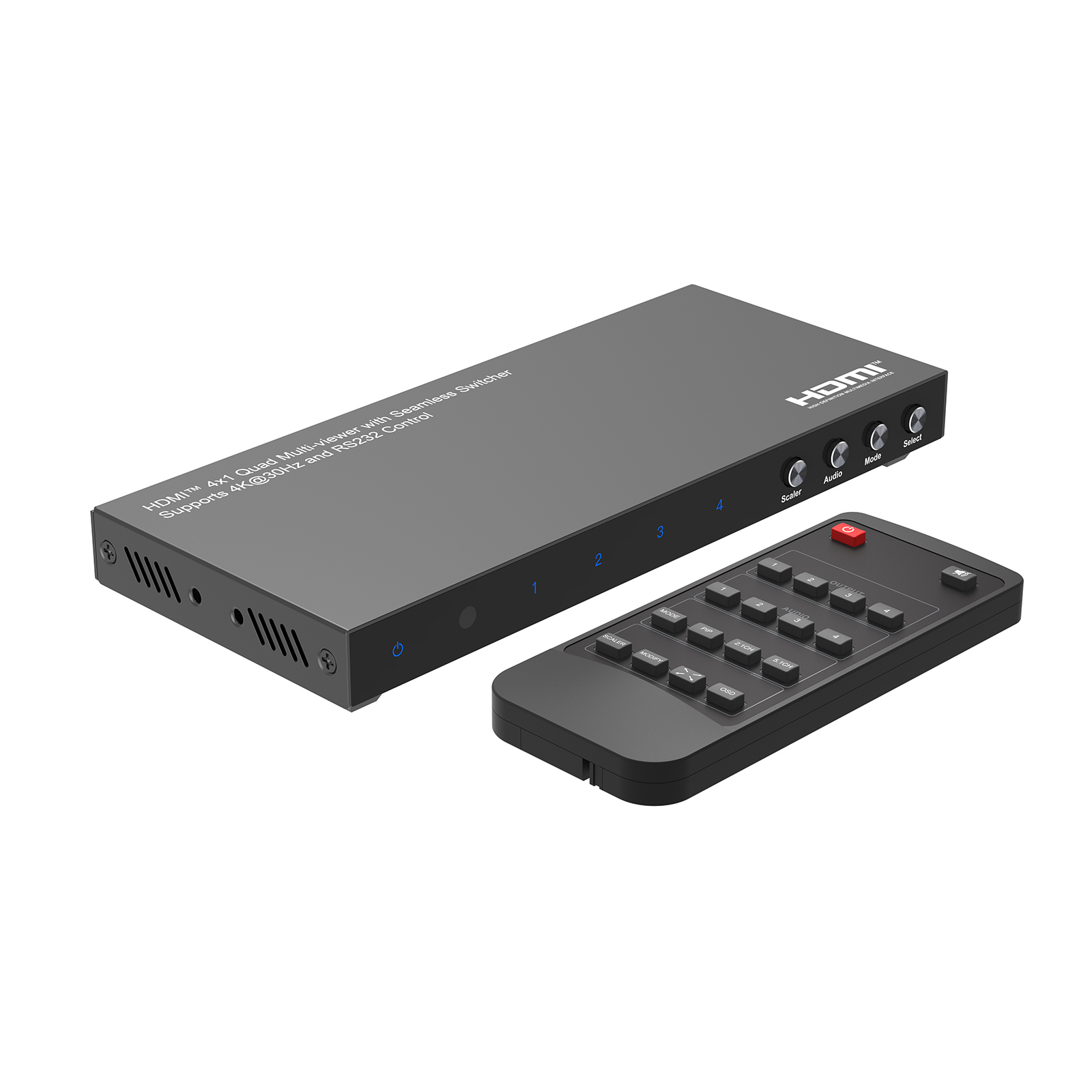

- Support manual control, IR remote control and RS232 control.
SPECIFICATIONS

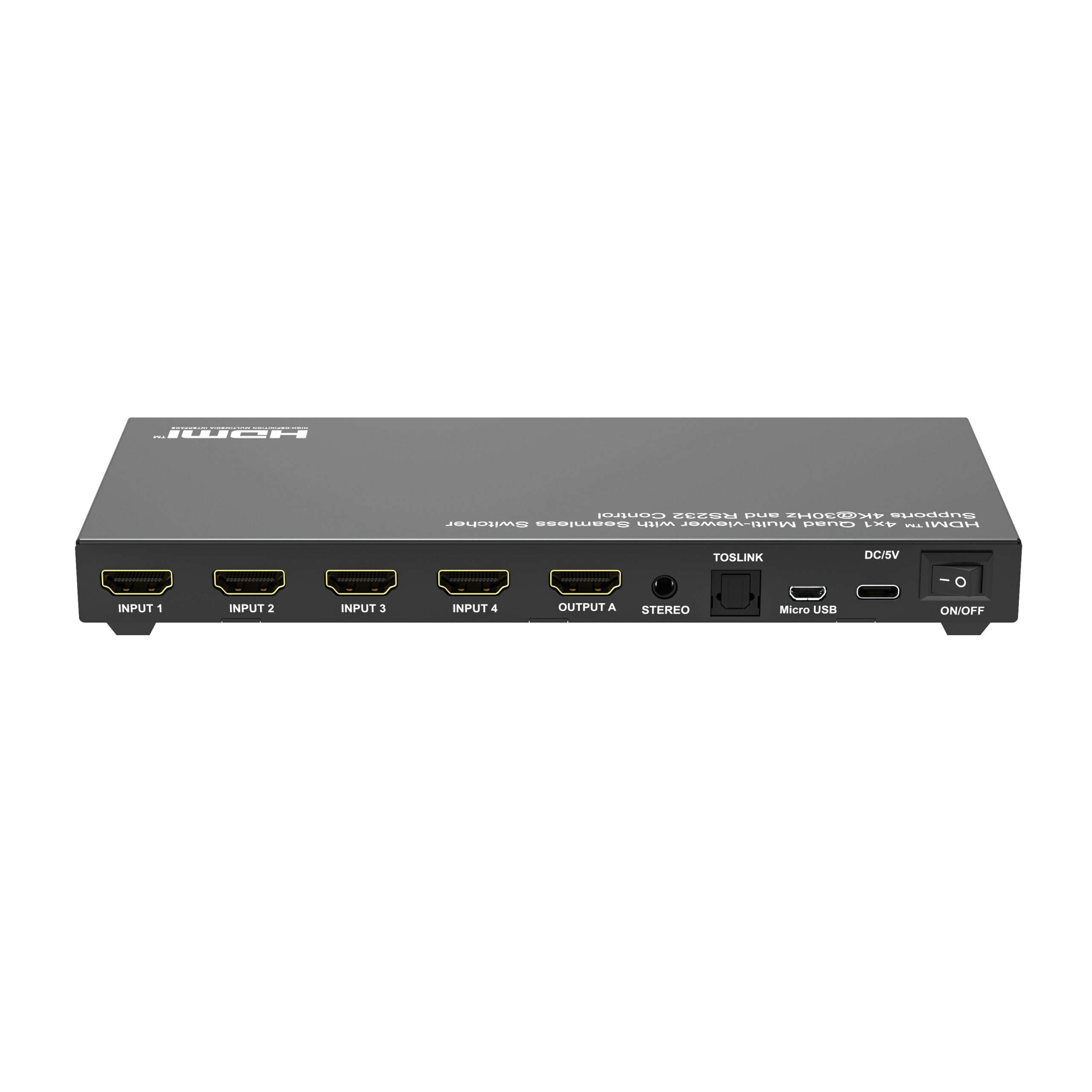

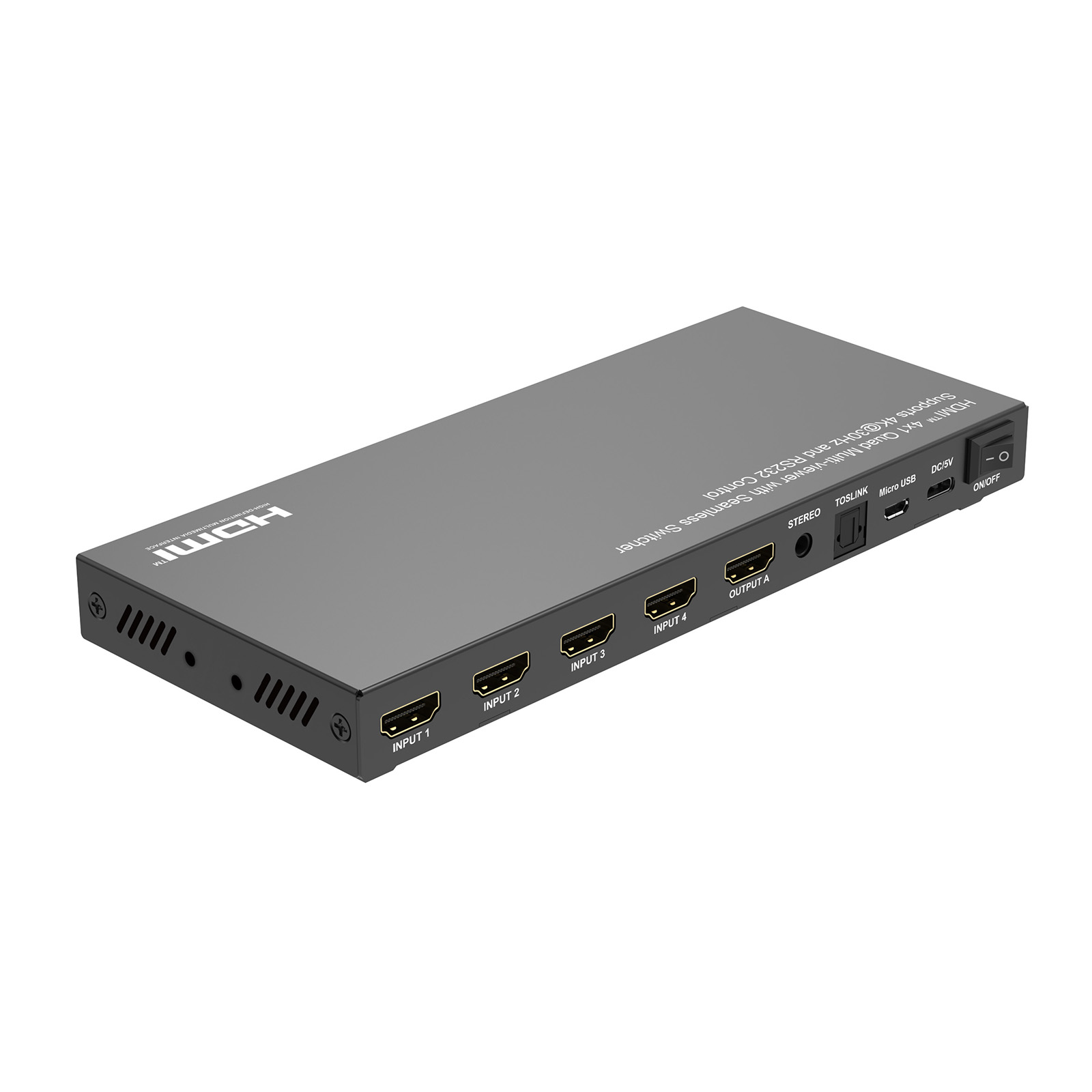

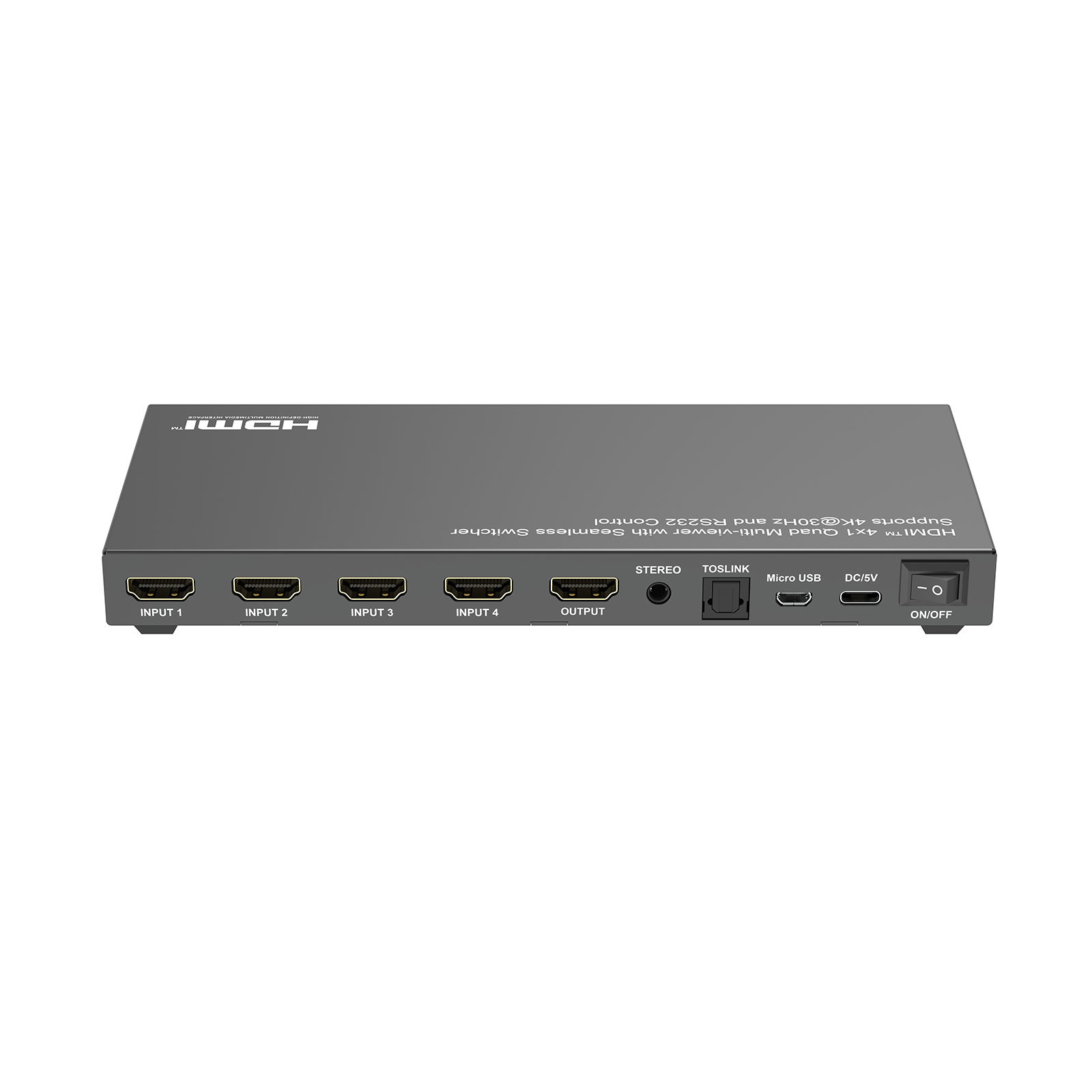

Input Ports
- HDMI x 4
Output Ports
- HDMI x 1, Stereo x 1, SPDIF x 1
Vertical Frequency Range
- 24/25/30/50/60Hz
Video Amplifier Bandwidth
- 3.4Gbps/340MHz per channel(10.2Gbps all channel)
Interlaced(50&60Hz)
- 480i, 576i, 1080i
Progressive(50&60Hz)
- 480p, 576p, 720p, 1080p, 4K@24/25/30
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- 5V DC @1A
Power Consumption (Max)
- 2W
Matrix Switcher Unit Cert
- CE, FCC, RoHS
Power Supply Cert
- CE, FCC, RoHS
Power Adapter Standard
- US, EU, UK, AU Standard etc.
Dimension(LxWxH)
- 197.5x 91×18.5mm
Net Weight
- 360g
Material
- Metal
User Manual
- English
Note: Specifications are subject to change without notice.
