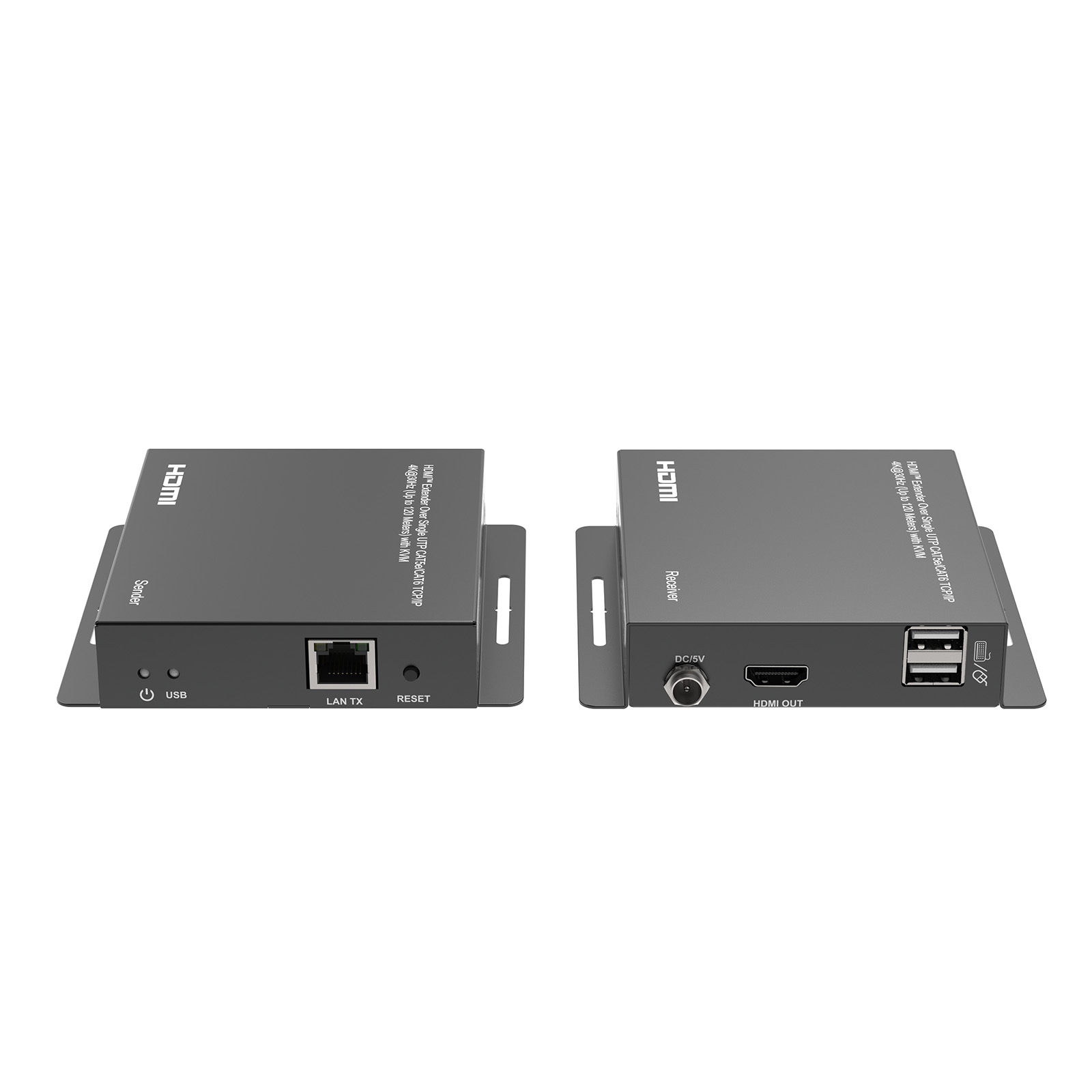

HDM™ Extender Over Single UTP CAT5e/CAT6 TCP/IP 4K@30Hz(Up to 120 Meters) with KVM, supports 1:1, 1:N

INTRODUCTION

The HDM™ video Extender lets you extend HDMI™ signal or DVI Signal (using HDMI™-DVI adapter, not included) by up to 120m (395 ft) for Ultra HD(4K@30Hz) video and 200m(660 ft) for HD video, over single Cat6 cable. An ideal solution for sharing a display or projector over an LAN network so that even the video source lacking digital video output can still connect,it also transmit the USB1.1 control signals at the same time, perfect for controlling your video source from your video destination.

FEATURES

• Features 2 extension mode: simple mode (1:1) and allocation mode (1: N).
• Following TCP/IP standard.
• Supports resolution up to 480p/720p/1080i/1080p/4K@30Hz.
• Supports max video bandwidth to 3.4Gbps/340MHz per channel (10.2Gbps all channels).
• CAT5e/6 cable follows the standard of IEEE-568B.
• Supports 3D.
• Supports remote USB mouse and keyboard connection (up to 2 ports at receiver).

SPECIFICATIONS
