INTRODUCTION

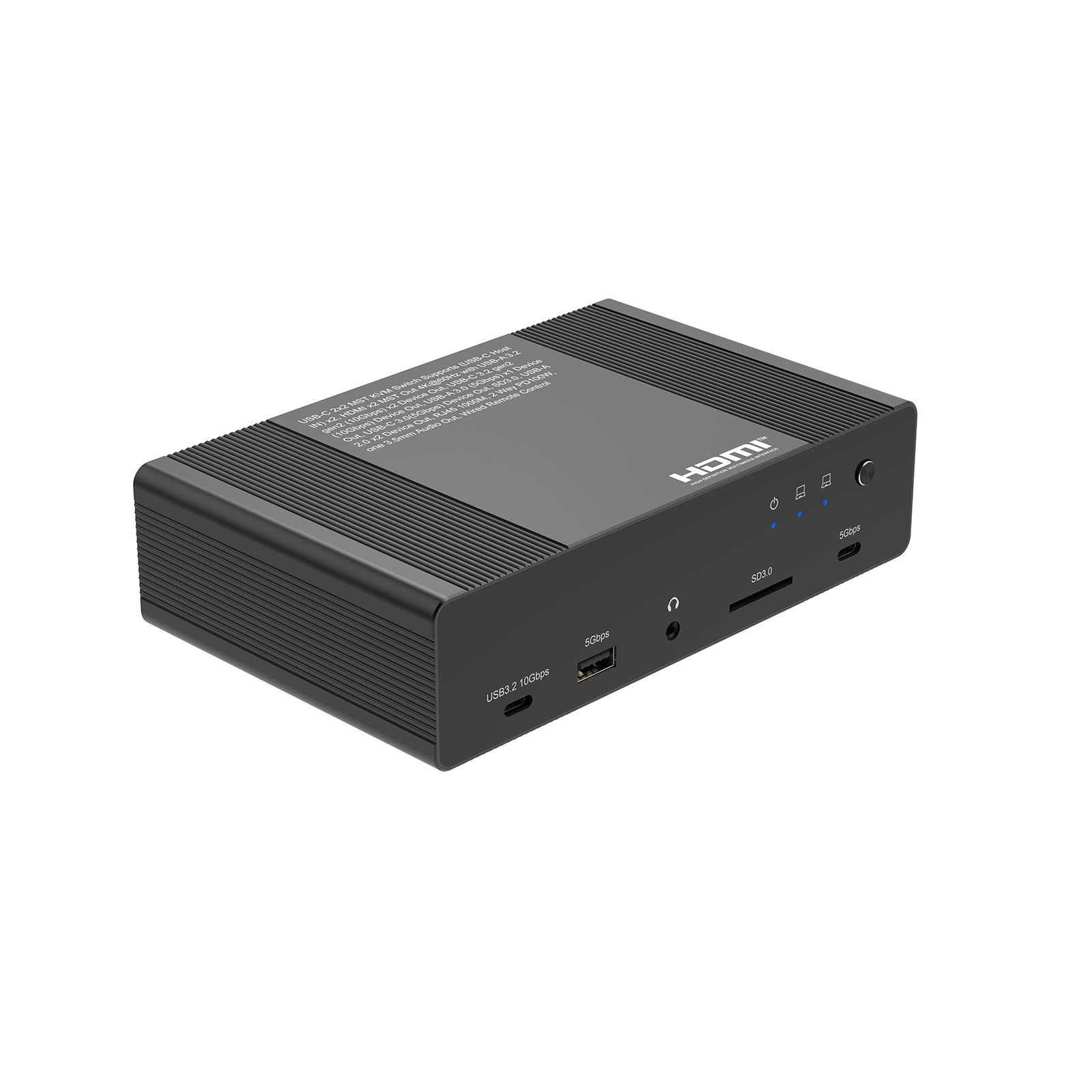

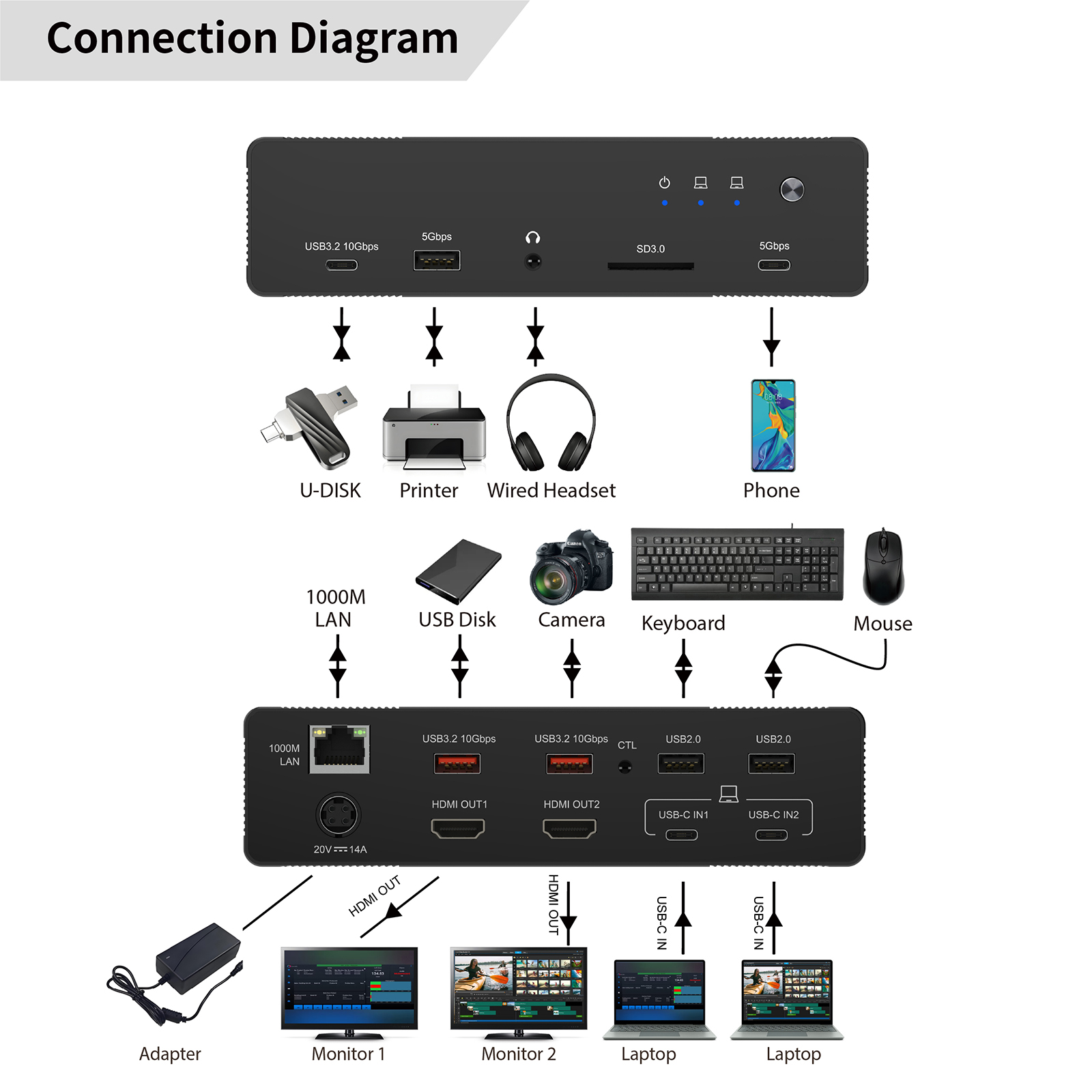

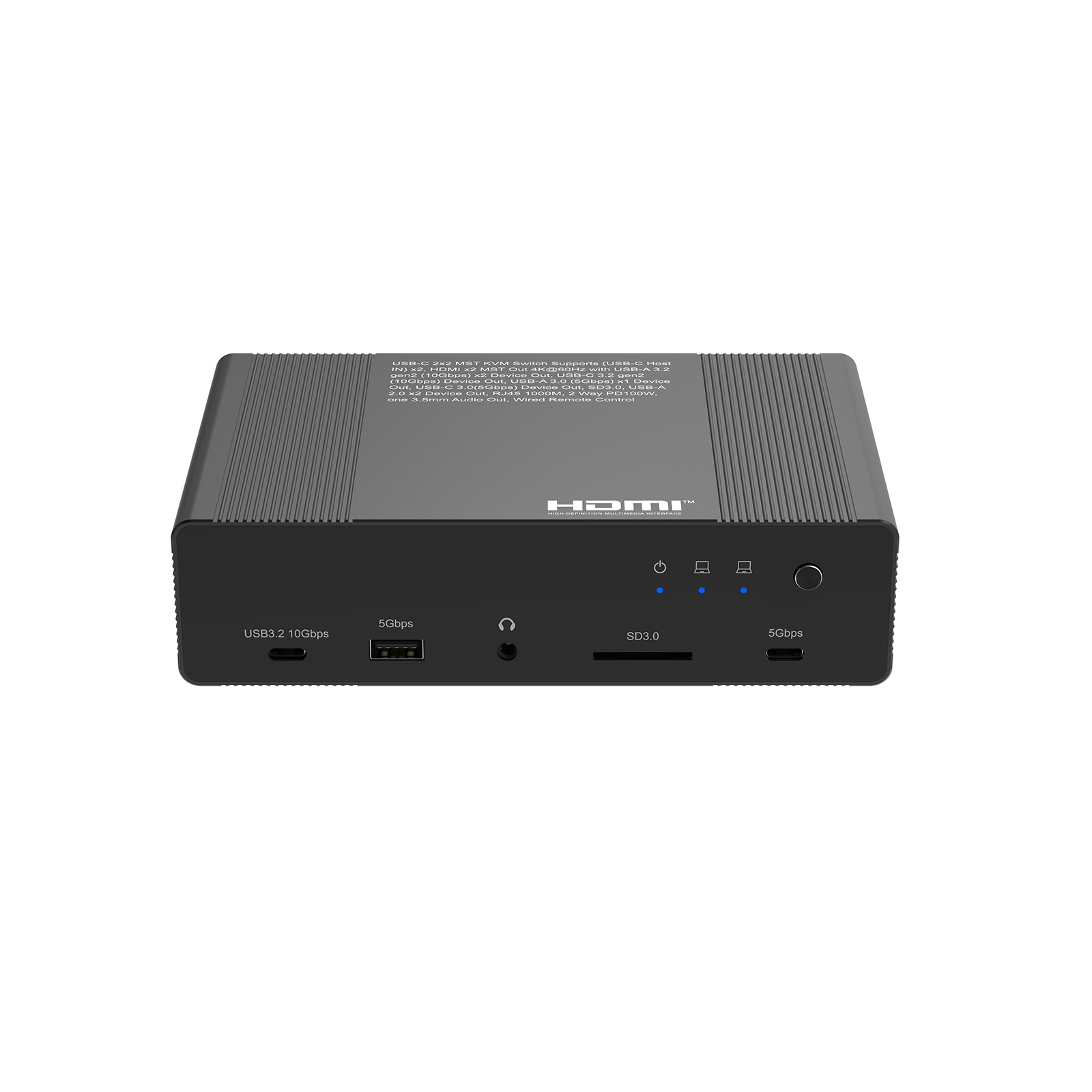

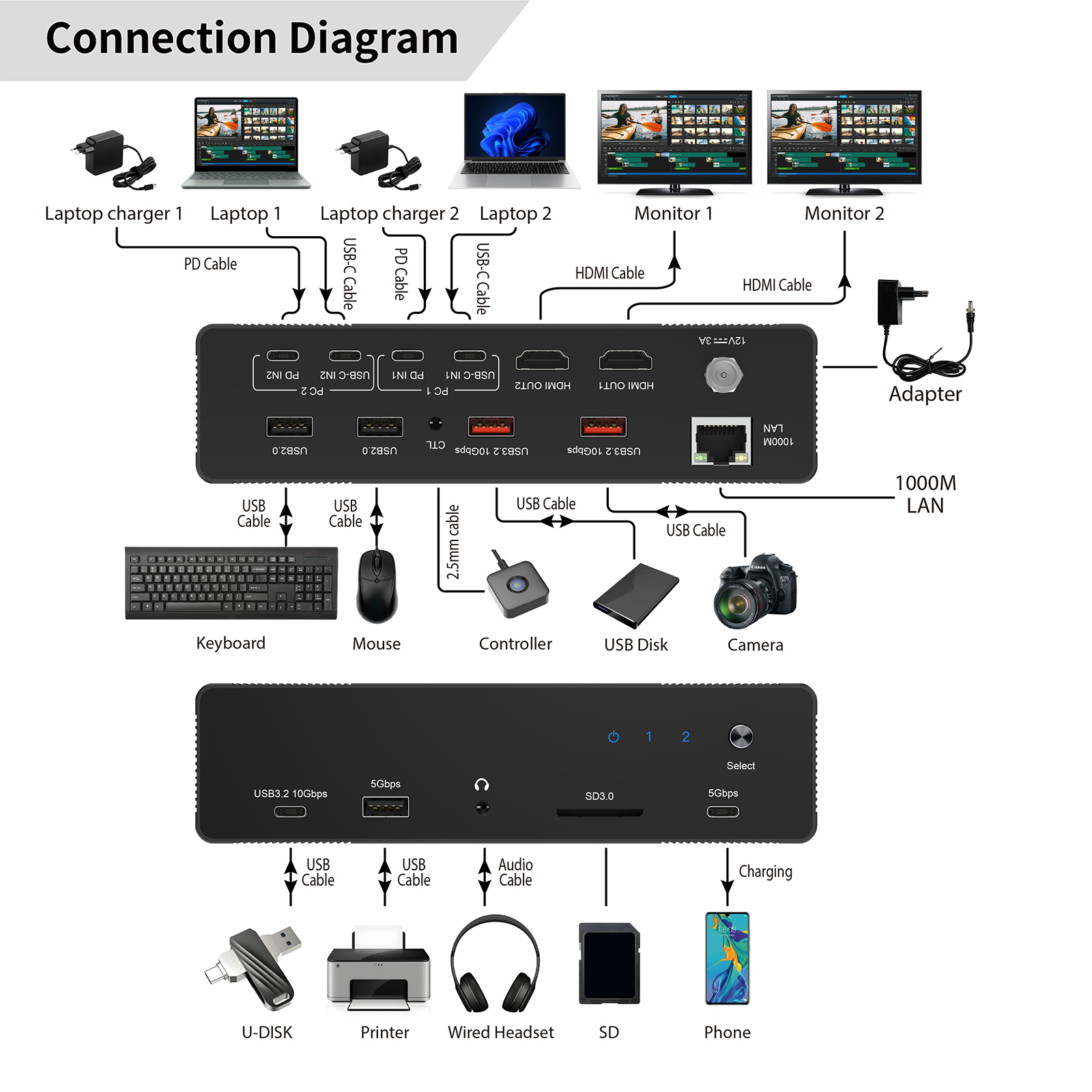

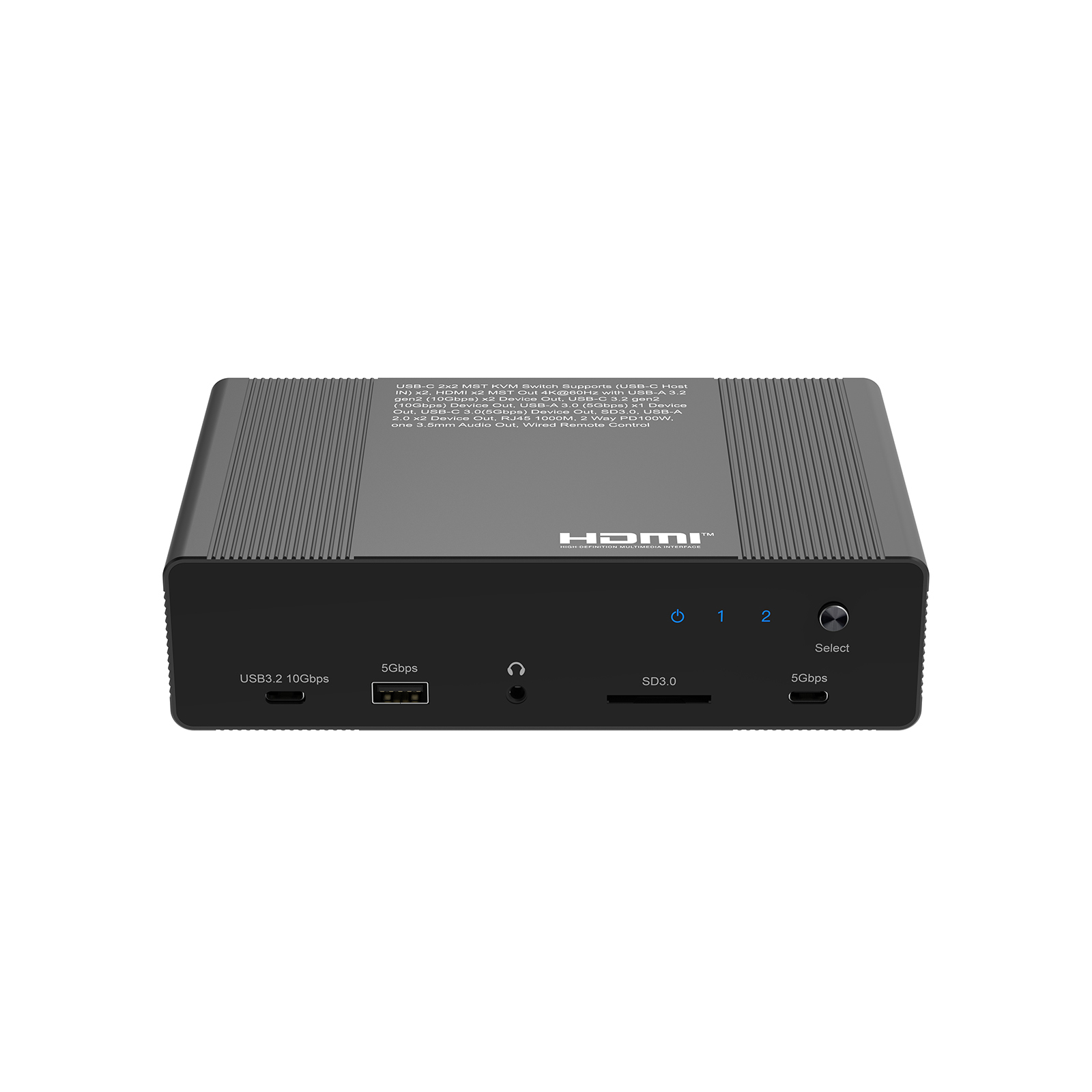

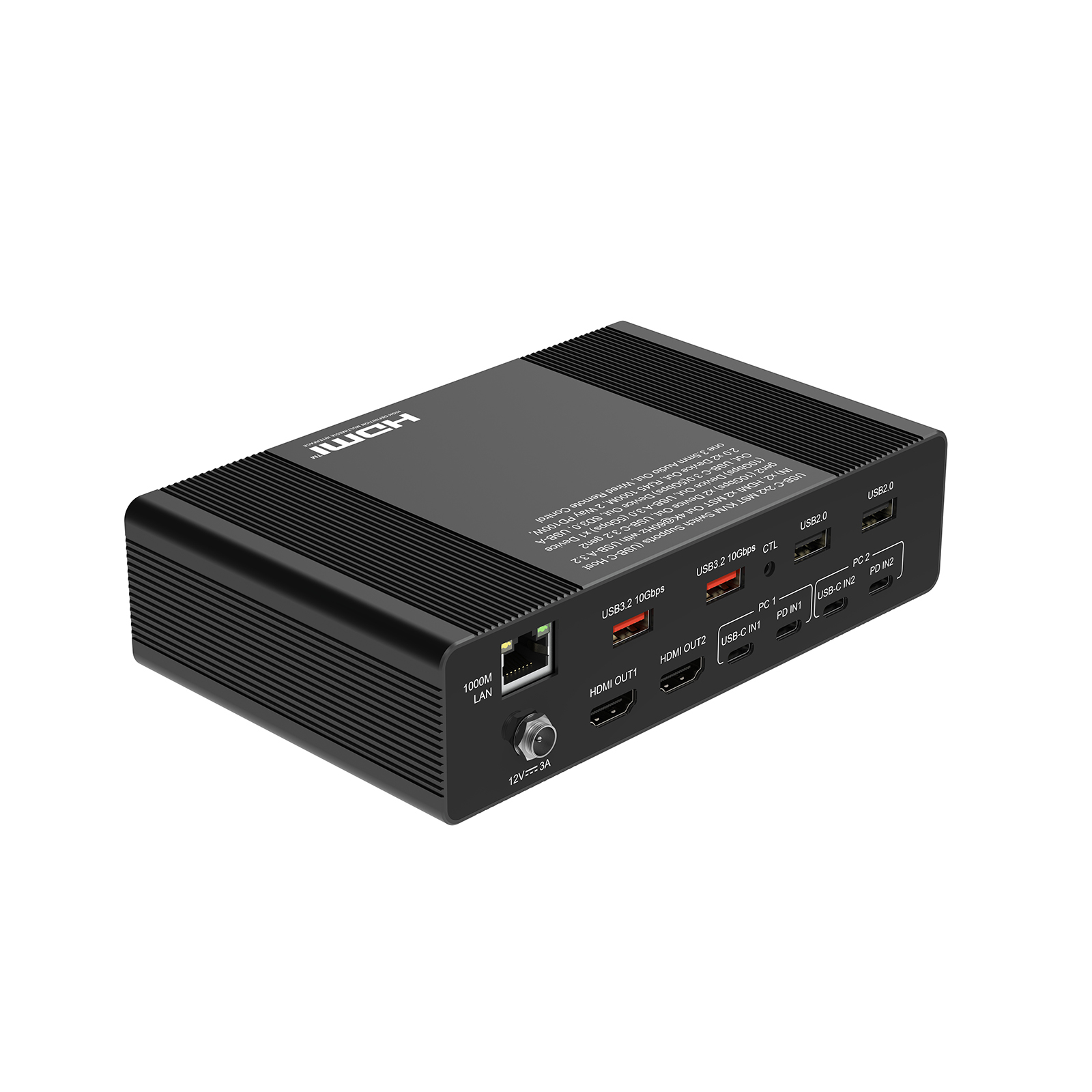

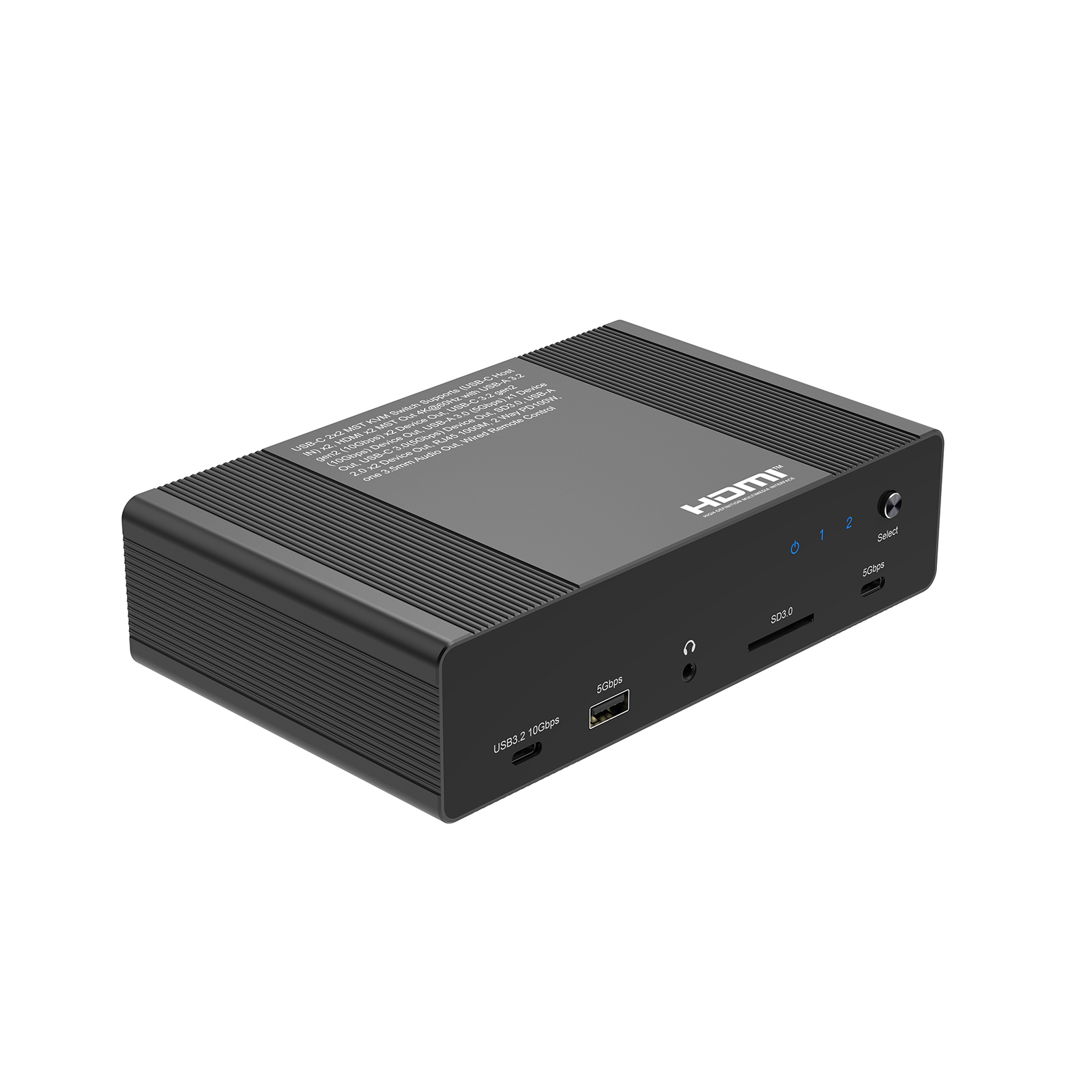

The USB-C 2×2 MST KVM Switch Supports 2x (USB-C Host IN), 2 x HDMI MST Out 4K@60Hz with 2 x USB-A 3.2 gen2 (10Gbps) Device Out, USB-C 3.2 gen2 (10Gbps) Device Out, 2 x USB-A 3.0 (5Gbps) Device Out, USB-C 3.0(5Gbps) Device Out, SD3.0, 2 x USB-A 2.0 Device Out, RJ45 1000M, 2 Way PD100W, one 3.5mm Audio out, Wired Remote Control let two displays or projectors with two USB-C-enabled video sources. The switch features two USB-C inputs that support 4K resolution and USB3.2 10Gbps. It features 2 x USB-A 3.2 gen2 (10Gbps) ports, one USB-C 3.2 gen2 (10Gbps)port, one USB-A 3.2 gen1(5Gbps), one USB-C 3.2 gen1(5Gbps)port, one SD3.0, two USB 2.0 port, one RJ45 1000M Port and one audio out port, which makes the customers share a pair of Keyboard, mouse and other USB device between two USB-C-enable laptops and devices. Enjoy hassle-free operation with two switching modes: Manual port switching via top panel button or Wired Remote Control.
FEATURES
- Support two USB-C inputs(need the laptop USB-C Support the DP alt mode).
- Support two USB-A 3.2 gen2(10Gbps) and one USB-C 3.2 gen2(10Gbps) ports for other USB devices up to 10Gbps.
- Support one USB-A 3.2 gen1(5Gbps) and one USB-C 3.2 gen1(5Gbps) ports (PD 20W 8.95V 2.18A)for other USB devices up to 5Gbps.
- Support one SD3.0 up to 104MB/S.
- Support one 1000Mbps RJ45 port.
- Support two USB-A ports for USB keyboard, mouse.
- Support stereo audio out function.
- Support dual HDMI output and MST function with windows OS laptop in.
- Support manual switching: top panel button or Wired Remote Control.
- Support full 3D video format.
- Support high resolution up to 4K@60Hz YUV 4:4:4.
- Support HDCP 2.2 and HDCP 1.4.
- Support High Dynamic Range (HDR) video.
- Support Consumer Electronics Control.
- Support highest data transfer rate up to 6.0Gbps per channel (18Gbps all channels).
- TMDS clock can be up to 600MHz.
- Support 12bit per channel (36bit all channels) deep color.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS

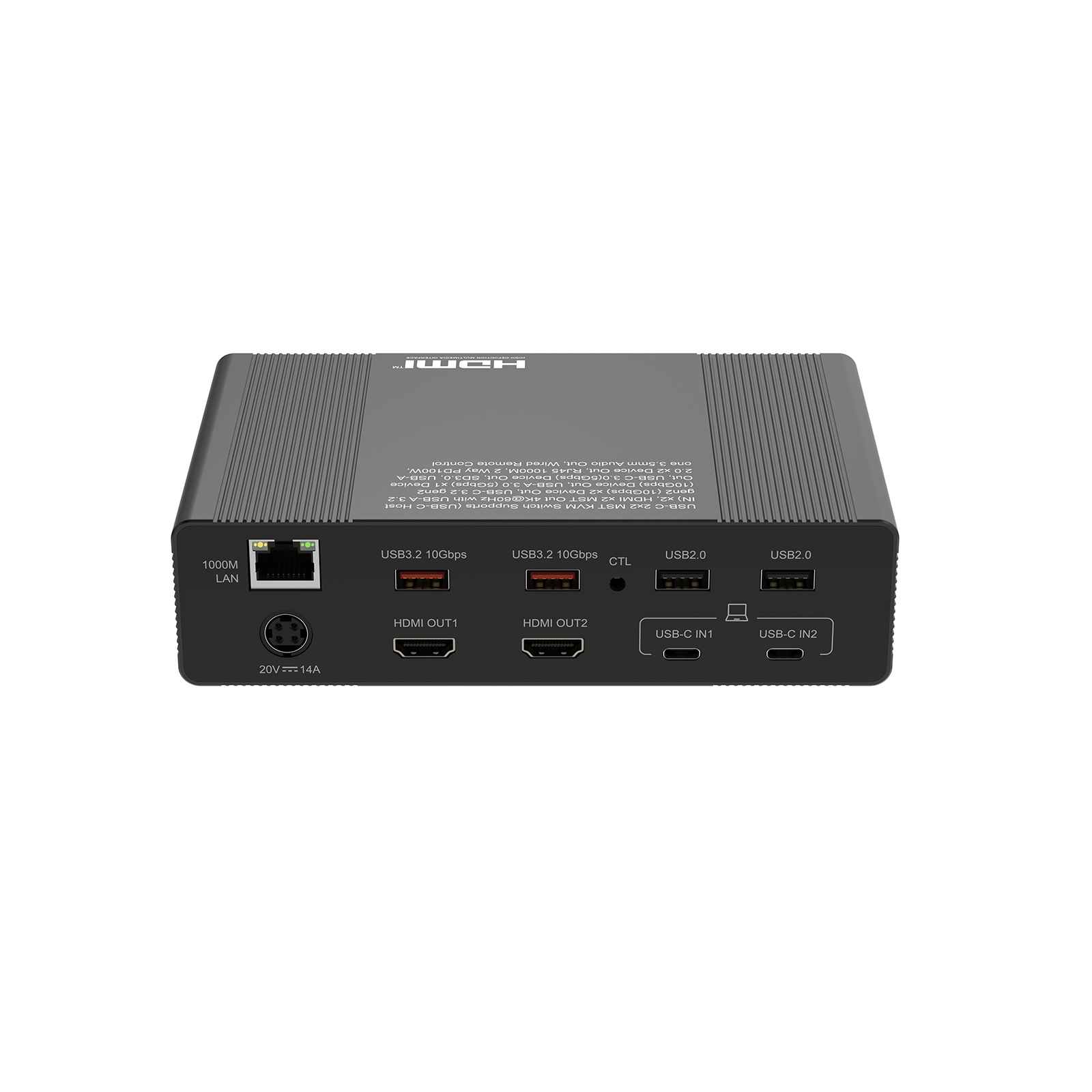

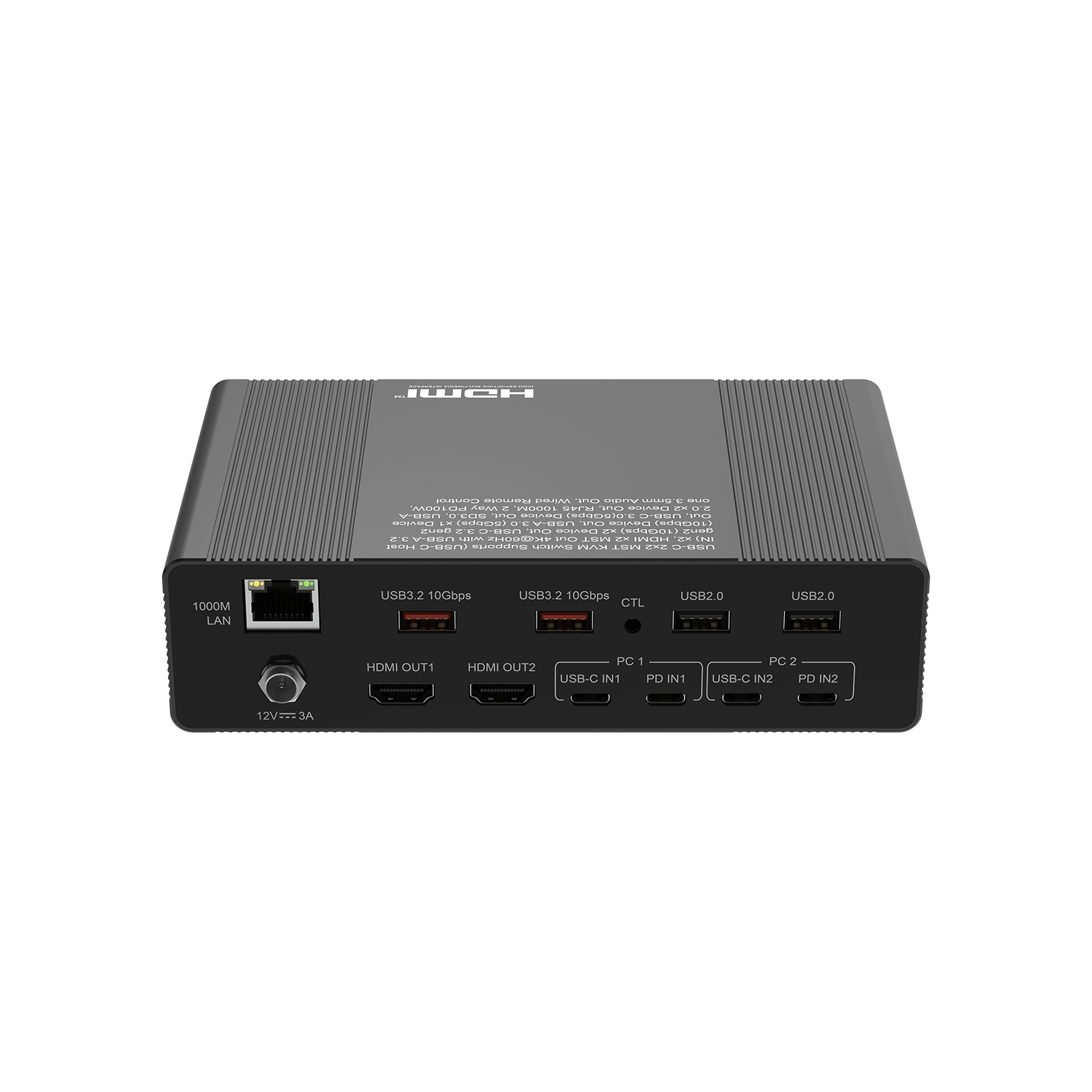

Input Ports
- USB-C x 2, Control (2.5mm) x1
Output Ports
- HDMI x 2, USB-C 3.2 gen2 x 1, USB-A 3.2 gen2 x 2,USB-C 3.2 gen1 x 1, USB-A 3.2 gen1 x 1, SD3.0x1,1000M RJ45 x1,Audio x 1
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 6.0Gbps/600MHz per channel(18Gbps all channels)
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive(50&60Hz)
- 480p,576p,720p,1080p,4K@24/25/30/50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 80% RH non-condensation
Switcher Unit Cert
- FCC, CE, RoHS
Dimension(LxWxH)
Net Weight
Material
- ABS
User Manual
- English Version
